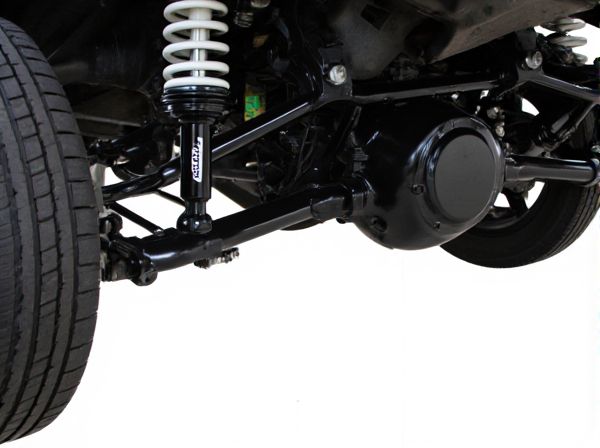

Photo illustration: Double Wishbone Frame vs MacPherson Strut Frame
Double Wishbone Frame offers superior handling and stability by maintaining better tire contact with the road through independent suspension arms. MacPherson Strut Frame is more compact and cost-effective, making it ideal for smaller vehicles with simpler suspension needs. Understanding these differences helps you choose the best suspension setup for your driving preferences and vehicle performance goals.
Table of Comparison
| Feature | Double Wishbone Frame | MacPherson Strut Frame |
|---|---|---|
| Design | Two control arms (upper and lower) | Single control arm with strut assembly |
| Space Efficiency | Requires more space, complex | Compact, saves space |
| Ride Comfort | Superior handling and stability | Moderate handling, less stability |
| Cost | Higher manufacturing cost | Lower cost, economical |
| Maintenance | More complex, higher cost | Simple design, easier maintenance |
| Common Uses | Sports cars, luxury vehicles | Compact cars, economy vehicles |
Introduction to Automotive Suspension Frames
Double wishbone frames offer superior handling and ride comfort by providing precise control over wheel alignment through two control arms per wheel, enhancing stability during cornering. MacPherson strut frames feature a simpler, more compact design with fewer components, leading to reduced manufacturing costs and improved space efficiency, commonly used in front suspensions of compact and mid-sized cars. Both suspension frames play crucial roles in vehicle dynamics, affecting handling, ride quality, and overall driving experience.
What is a Double Wishbone Frame?
A Double Wishbone Frame is a type of independent suspension system that uses two wishbone-shaped arms to support the wheel, allowing precise control over camber angle throughout suspension travel. This design improves handling and stability by maintaining optimal tire contact with the road, especially during cornering and braking. It is commonly found in performance and luxury vehicles due to its superior ride quality and adaptability compared to the simpler MacPherson Strut Frame.
What is a MacPherson Strut Frame?
A MacPherson Strut frame is a type of automotive suspension design that combines a shock absorber and a coil spring into a single unit, providing a compact and efficient solution for front-wheel-drive vehicles. This suspension system reduces weight and complexity compared to the Double Wishbone frame, improving fuel efficiency and interior space. Its simpler construction lowers production costs while maintaining adequate handling and ride comfort for most passenger cars.
Structural Design Differences
Double wishbone frames use two control arms per wheel, providing superior camber control and allowing independent suspension travel, which enhances handling and ride quality. MacPherson strut frames combine a shock absorber and coil spring into a single assembly, simplifying design and saving space but offering less precise wheel alignment control. The structural layout of double wishbone setups is more complex and robust, often resulting in increased manufacturing costs compared to the more compact and cost-effective MacPherson strut design.
Handling and Performance Comparison
Double wishbone suspension frames enhance handling by providing superior camber control and maintaining optimal tire contact during cornering, resulting in increased grip and stability. MacPherson strut frames offer a more compact, lightweight design that improves responsiveness and efficiency but may sacrifice some precision in handling under aggressive driving conditions. Performance-wise, double wishbone setups are preferred in sports and high-performance vehicles due to their ability to deliver consistent handling characteristics and better road feedback.
Ride Comfort and Stability
The double wishbone frame offers superior ride comfort and stability by allowing independent wheel movement, which reduces body roll and improves handling on uneven surfaces. MacPherson strut frames provide a more compact and cost-effective design but often compromise on ride smoothness and cornering stability due to their simpler suspension geometry. In performance and luxury vehicles, double wishbone suspension is preferred for enhanced stability and refined ride quality.
Cost and Manufacturing Considerations
Double Wishbone frames generally incur higher manufacturing costs due to their complex design and precision engineering requirements, involving multiple control arms and ball joints that increase assembly time. MacPherson strut frames offer a cost-effective alternative with fewer components and simpler assembly, making them popular in mass-produced vehicles. The streamlined manufacturing process of MacPherson strut frames results in lower material and labor expenses, contributing to overall reduced vehicle production costs.
Space Efficiency in Vehicle Design
The MacPherson strut frame offers superior space efficiency in vehicle design due to its compact structure, combining coil spring and shock absorber into a single unit, which frees up more room in the engine bay and passenger compartment. In contrast, the double wishbone frame requires additional space for its two control arms and separate components, making it less favorable for compact vehicles aiming to maximize interior space and cargo capacity. This spatial advantage allows manufacturers to optimize cabin design and accommodate larger engines or battery packs in electric vehicles when using MacPherson strut suspension.
Common Applications and Use Cases
Double wishbone suspension systems are commonly used in high-performance sports cars, luxury vehicles, and off-road trucks due to their superior handling, precise steering control, and better camber adjustment. MacPherson strut frames are extensively found in compact cars, sedans, and economy vehicles because of their simpler design, cost-effectiveness, and space-saving benefits. The double wishbone setup excels in scenarios requiring enhanced stability and road feedback, while MacPherson struts are preferred for everyday urban driving and manufacturing efficiency.
Which Suspension Frame is Best for You?
Double Wishbone suspension frames offer superior handling and stability by allowing independent wheel movement and better camber control, making them ideal for performance-oriented drivers and off-road enthusiasts. MacPherson Strut frames are more compact and cost-effective, providing a comfortable ride and simpler maintenance, which suits everyday commuters and vehicles with limited space. Choosing the best suspension frame depends on your driving needs: opt for Double Wishbone if you prioritize precision and sporty handling, while MacPherson Strut fits well for practicality and budget-conscious users.
