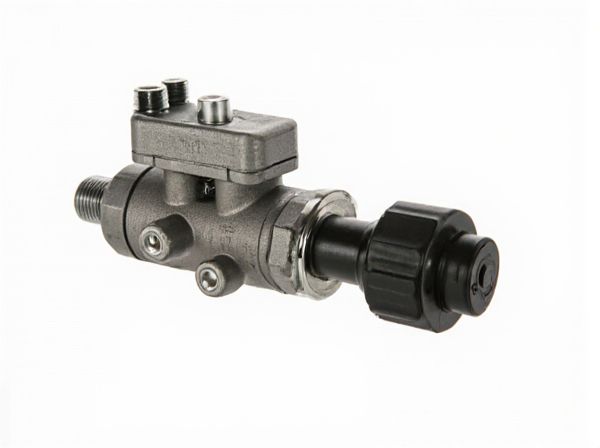

Photo illustration: Proportioning Valve vs Metering Valve
A proportioning valve controls fluid flow by adjusting the ratio between input and output pressures, ensuring precise balance in hydraulic systems. Metering valves regulate the flow rate, allowing you to control the speed of actuators by restricting fluid volume. Choosing between these valves depends on whether pressure modulation or flow rate control is critical for your application.
Table of Comparison
| Feature | Proportioning Valve | Metering Valve |
|---|---|---|
| Function | Adjusts rear brake pressure to prevent lockup under heavy braking | Delays front brake application to rear brakes for balanced braking |
| Location | Installed in the rear brake line | Installed between master cylinder and front brakes |
| Use Case | High-performance and heavy vehicles for rear brake pressure control | Disc/drum brake systems to regulate front/rear brake timing |
| Operation | Reduces pressure proportionally at rear brakes based on load | Delays pressure to rear brakes until front brakes engage |
| Benefit | Prevents rear wheel lockup and enhances vehicle stability | Improves front/rear brake balance, reducing front brake fade |
| Typical Application | Disc/disc and disc/drum brake systems in trucks and SUVs | Disc/drum systems, especially when front brakes are discs, rear drums |
Introduction to Brake System Valves
Brake system valves are critical components that regulate hydraulic pressure to ensure safety and performance. Proportioning valves adjust brake pressure between the front and rear brakes to prevent wheel lockup during heavy braking, while metering valves delay front brake engagement to allow rear brakes to activate first, stabilizing vehicle control. Understanding the distinct functions of proportioning and metering valves helps optimize braking efficiency and maintain balanced brake force distribution.
What is a Proportioning Valve?
A proportioning valve is a hydraulic component used in brake systems to regulate the pressure between the front and rear brakes, ensuring balanced braking performance and preventing rear wheel lockup. It adjusts the brake fluid pressure based on load conditions, improving vehicle stability and safety during braking. Unlike a metering valve, which primarily delays front brake engagement, the proportioning valve actively modulates pressure to optimize braking efficiency.
What is a Metering Valve?
A metering valve precisely controls the flow rate of fluids in hydraulic or pneumatic systems by adjusting the size of the passage through which the fluid passes. Unlike proportioning valves that balance pressure between circuits, metering valves focus on regulating flow volume to ensure accurate and stable system operation. These valves are essential in applications requiring fine-tuned fluid control, such as fuel injection and industrial automation systems.
Function and Purpose Comparison
A proportioning valve adjusts brake fluid pressure between the front and rear brakes to prevent rear wheel lockup and maintain vehicle stability during braking. In contrast, a metering valve delays hydraulic pressure to the front brakes, allowing the rear brakes to engage first for smoother braking performance. Both valves enhance brake system safety but serve distinct roles in managing brake fluid flow and pressure distribution.
Key Differences Between Proportioning and Metering Valves
Proportioning valves modulate brake fluid pressure to balance front and rear brake force, preventing wheel lockup during heavy braking, while metering valves delay pressure application to the front brakes, ensuring rear brakes engage first for controlled stopping. Proportioning valves adjust pressure based on load or brake pedal force, offering dynamic brake distribution, whereas metering valves provide a fixed delay in pressure, primarily enhancing initial brake feel and stability. Understanding these functional distinctions is crucial for optimizing braking system performance and vehicle safety.
How Proportioning Valves Work
Proportioning valves regulate brake fluid pressure between the front and rear brakes to prevent wheel lockup and ensure balanced braking performance. By modulating hydraulic pressure based on load and braking conditions, these valves adjust the force distribution to maintain vehicle stability and control. Metering valves, in contrast, primarily delay pressure application to front brakes, but proportioning valves actively manage pressure ratios for optimal brake system efficiency.
How Metering Valves Operate
Metering valves regulate fluid flow by precisely controlling the rate at which a liquid or gas passes through the valve, often using a needle-like stem that adjusts the flow passage size. These valves operate by creating a fine, adjustable orifice that allows for smooth and accurate flow modulation under varying pressure conditions. Unlike proportioning valves that balance pressure between circuits, metering valves focus solely on flow rate control to ensure consistent delivery within hydraulic or pneumatic systems.
Common Applications and Vehicle Types
Proportioning valves are primarily used in hydraulic brake systems of passenger cars and light trucks to balance front and rear brake pressure, preventing rear wheel lockup during sudden stops. Metering valves are commonly found in drum brake systems of older vehicles and some heavy-duty trucks, managing front disc and rear drum braking engagement to ensure smooth, coordinated stopping. Both valves are critical in maintaining brake system safety and performance across various vehicle types, including SUVs, sedans, and commercial vehicles.
Signs of a Faulty Proportioning or Metering Valve
A faulty proportioning or metering valve often causes uneven brake pressure, leading to symptoms such as longer stopping distances, brake lockup, or a spongy brake pedal. Drivers may notice unusual brake pedal resistance or hear noises during braking, indicating valve malfunction. Early detection of these signs is crucial to maintain optimal brake system performance and vehicle safety.
Choosing the Right Valve for Your Brake System
Choosing the right valve for your brake system hinges on understanding the distinct functions of proportioning valves and metering valves; proportioning valves adjust hydraulic pressure to rear brakes to prevent wheel lockup, while metering valves delay front brake engagement for balanced braking. Proportioning valves are critical in systems with drum brakes at the rear, ensuring rear brake pressure does not exceed traction limits, whereas metering valves are essential in disc/drum setups to allow front disc brakes to activate slightly before the rear drums. Selecting the correct valve improves safety and braking efficiency by optimizing brake force distribution tailored to your vehicle's specific brake configuration.
