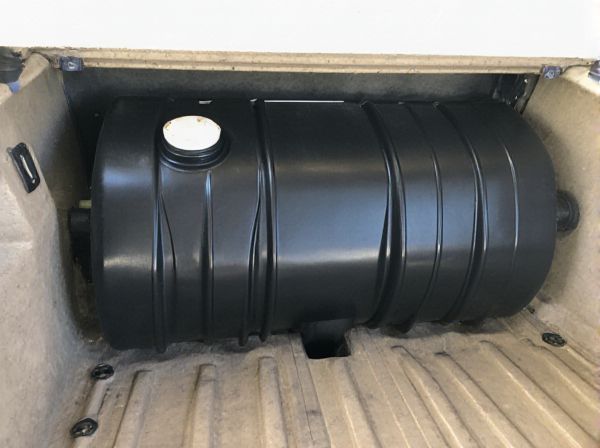

Photo illustration: Underfloor Tank vs In-bed Tank
An underfloor tank is installed beneath the vehicle's floor, maximizing bed space and improving payload capacity. In-bed tanks occupy space within the truck bed, which can reduce cargo area but may simplify installation and maintenance. Choosing the right option depends on your need for bed space versus installation convenience.
Table of Comparison
| Feature | Underfloor Tank | In-bed Tank |
|---|---|---|
| Location | Mounted beneath vehicle chassis | Installed inside truck bed |
| Space Utilization | Maximizes cargo bed space | Consumes cargo bed space |
| Fuel Capacity | Typically larger, 20-40 gallons | Usually smaller, 10-25 gallons |
| Installation Complexity | More complex, requires chassis modification | Less complex, easier to install |
| Fuel Safety | Better protection from impacts | More exposed to damage |
| Weight Distribution | Improves vehicle balance | May affect rear axle load |
| Cost | Higher installation cost | Lower installation cost |
Introduction to Fuel Storage Solutions
Underfloor tanks provide discreet fuel storage beneath a vehicle, maximizing cargo space while ensuring safety and protection from environmental elements. In-bed tanks, installed within the truck bed, offer easier access for maintenance and typically higher fuel capacity, suitable for heavy-duty applications. Selecting between underfloor and in-bed tanks depends on vehicle type, fuel requirements, and operational efficiency priorities.
What Is an Underfloor Tank?
An underfloor tank is a fuel storage solution installed beneath the floor of a vehicle or machinery compartment, designed to maximize space efficiency and lower the center of gravity. Commonly used in commercial trucks and trailers, these tanks offer enhanced protection from external damage and optimize vehicle payload capacity. Underfloor tanks are typically constructed from durable materials such as aluminum or steel to withstand harsh operating conditions and corrosion.
What Is an In-bed Tank?
An in-bed tank is a fuel storage solution installed directly within the bed of a pickup truck, providing secure and convenient fuel transport without sacrificing cargo space. This type of tank is typically custom-fitted to the truck bed, offering enhanced accessibility and often higher capacity compared to underfloor tanks, which are mounted beneath the vehicle's chassis. In-bed tanks are preferred in industries requiring easy refueling on-site, such as construction, agriculture, and emergency services.
Installation Requirements
Underfloor tanks require precise excavation and waterproofing measures to prevent soil contamination and structural damage, alongside compliance with local environmental regulations. In-bed tanks offer easier installation by integrating directly into the vehicle bed, minimizing modifications and preserving cargo space. Both tank types demand secure mounting and fuel line connections to ensure safety and operational efficiency.
Space Utilization and Vehicle Layout
Underfloor tanks maximize space utilization by being installed beneath the vehicle chassis, allowing for a lower center of gravity and more cargo or equipment room above the tank. In-bed tanks occupy space within the truck bed, reducing available cargo area but simplifying installation and maintenance. Vehicle layout considerations favor underfloor tanks for streamlined profiles and improved weight distribution, while in-bed tanks offer flexibility for retrofitting and customization in existing bed designs.
Capacity and Fuel Accessibility
Underfloor tanks typically offer larger fuel capacities ranging from 70 to 200 liters, making them ideal for heavy-duty vehicles requiring extended range without frequent refueling. In-bed tanks, with capacities generally between 40 to 100 liters, provide easier fuel accessibility and faster refills due to their placement within the truck bed. The choice between underfloor and in-bed tanks depends on balancing the need for maximum fuel storage and convenient access during operations.
Safety Considerations
Underfloor tanks offer enhanced safety by minimizing exposure to impact and reducing fire hazards due to their recessed placement beneath a vehicle's floor, lowering the center of gravity and improving stability. In-bed tanks, while easier to access and install, carry higher risks of puncture or damage from cargo shifting or external collisions, potentially leading to fuel leaks or fires. Proper shielding and robust construction are critical for in-bed tanks to mitigate safety concerns, whereas underfloor tanks benefit from built-in structural protection inherent to their design.
Durability and Maintenance
Underfloor tanks offer enhanced durability with steel or polyethylene materials designed to resist corrosion and physical damage beneath the vehicle chassis. In-bed tanks, while easier to access for maintenance, are more exposed to environmental elements and potential impact damage, requiring regular inspections to prevent leaks. Proper sealing and rust protection significantly prolong the lifespan of underfloor tanks, whereas in-bed tanks demand frequent cleaning and checks to maintain optimal performance.
Cost Comparison
Underfloor tanks generally incur higher installation costs due to excavation and structural modifications, whereas in-bed tanks offer lower upfront expenses with simpler placement in the truck bed. Over time, underfloor tanks may reduce operational costs by freeing up cargo space and lowering theft risks, potentially increasing overall vehicle efficiency. In-bed tanks, while cheaper initially, can limit payload capacity and expose the tank to damage, possibly leading to higher maintenance expenses.
Choosing the Right Tank for Your Needs
Choosing the right tank depends on your vehicle type, cargo requirements, and space availability. Underfloor tanks offer a low center of gravity and increased bed space, ideal for heavier loads and improved vehicle stability. In-bed tanks provide easier access and simpler installation, making them suitable for lighter payloads and flexible use in pickup trucks.
