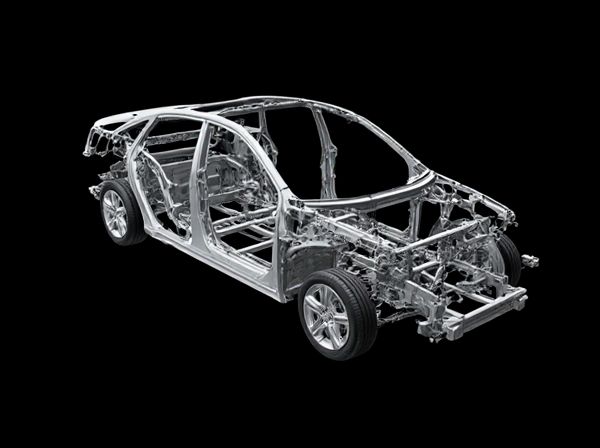

Photo illustration: Unibody vs Separate Frame
A unibody design integrates the vehicle's frame and body into a single structure, enhancing rigidity and reducing weight for improved fuel efficiency and handling. Separate frame construction uses a distinct chassis and body, offering greater durability and ease of repair, especially for heavy-duty or off-road use. Your choice depends on whether you prioritize performance and efficiency or robustness and versatility.
Table of Comparison
| Feature | Unibody Chassis | Separate Frame Chassis |
|---|---|---|
| Construction | Integrated body and frame | Body mounted on a distinct frame |
| Weight | Lighter, enhances fuel efficiency | Heavier due to separate frame |
| Strength & Durability | Less robust for heavy loads | Superior strength; ideal for towing and heavy use |
| Safety | Better crumple zones, improved crash absorption | Strong frame absorbs impact but less energy dissipation |
| Ride Comfort | Smoother ride, reduced vibrations | Rougher ride, more noise transmission |
| Repair & Maintenance | Cost-effective repairs; integrated design | Repairs can be more costly; frame damage complex |
| Common Use Cases | Passenger cars, SUVs, crossovers | Trucks, heavy-duty SUVs, off-road vehicles |
Introduction to Vehicle Frame Structures
Unibody and separate frame structures represent two fundamental vehicle chassis designs, with the unibody integrating the body and frame into a single cohesive unit, enhancing rigidity and reducing weight. Separate frame designs, also known as body-on-frame, feature a distinct, heavy frame supporting the vehicle's mechanical components, offering superior durability and ease of repair in rugged conditions. Automotive manufacturers select unibody for improved fuel efficiency and handling, while body-on-frame persists in trucks and SUVs where strength and load capacity are critical.
What is a Unibody Construction?
Unibody construction is a manufacturing technique where the vehicle's body and frame are integrated into a single, cohesive structure, enhancing rigidity and reducing overall weight. This design improves fuel efficiency and handling by distributing impact forces more evenly during collisions. It is commonly used in passenger cars and crossover SUVs for better ride comfort and safety performance.
What is a Separate Frame Construction?
Separate frame construction, also known as body-on-frame design, involves mounting the vehicle's body onto a distinct, rigid frame that supports the entire chassis. This method enhances durability and makes repairs easier, as the frame absorbs most of the road impact and stresses, ideal for trucks and off-road vehicles. Separate frames provide superior towing capacity and structural strength compared to unibody designs, which integrate the body and frame into a single cohesive piece.
Key Differences: Unibody vs Separate Frame
Unibody construction integrates the vehicle's body and frame into a single structure, offering enhanced rigidity and reduced weight, which improves fuel efficiency and handling. Separate frame design features a distinct chassis that supports the body, providing superior durability and better capability for heavy-duty tasks like towing and off-road driving. Key differences include unibody's emphasis on lighter weight and ride comfort versus the separate frame's strength and adaptability for rugged usage.
Structural Strength and Durability
Unibody construction integrates the frame and body into a single structure, enhancing rigidity and improving crash safety by distributing impact forces more evenly. Separate frame designs, commonly found in trucks and SUVs, offer superior durability and easier repairs under extreme conditions due to their rugged, modular build. Vehicles with separate frames typically withstand heavy loads and rough terrains better, while unibody cars excel in on-road stability and fuel efficiency.
Impact on Safety and Crash Performance
Unibody construction enhances safety by integrating the vehicle's frame and body into a single structure, which improves energy absorption and distribution during crashes, reducing passenger injury risk. Separate frame designs, typical in trucks and SUVs, offer durability and strength but can transfer crash forces less effectively, potentially compromising occupant protection. Modern unibody vehicles often incorporate crumple zones and reinforced pillars that optimize crash performance compared to traditional body-on-frame vehicles.
Weight and Fuel Efficiency Comparison
Unibody vehicle construction typically results in a lighter overall weight compared to separate frame designs, contributing to improved fuel efficiency by reducing the engine's workload and enhancing aerodynamics. Separate frame vehicles, while generally heavier due to a distinct chassis and body, offer increased durability and off-road capability but often consume more fuel as a consequence of their weight. The weight difference can range from 200 to 500 pounds, significantly impacting miles per gallon (MPG) and overall energy consumption in everyday driving conditions.
Maintenance and Repair Considerations
Unibody vehicles typically have integrated structures, making body repairs more complex and costly due to the need for specialized equipment and precise alignment. Separate frame vehicles allow for easier maintenance and repairs because the body and chassis can be worked on independently, often resulting in lower repair costs and simpler part replacements. Frame damage in unibody cars often compromises overall vehicle integrity, while in separate frame cars, damage is usually confined to the frame and easier to address.
Best Applications: Unibody vs Separate Frame
Unibody construction excels in passenger cars and crossovers due to its lightweight design and enhanced fuel efficiency, making it ideal for everyday commuting and urban driving. Separate frame vehicles are preferred for heavy-duty trucks, SUVs, and off-road applications because they offer superior durability, higher towing capacity, and better resistance to torsional flexing. Choosing between unibody and separate frame depends on the vehicle's intended use, with unibody suited for comfort and efficiency, while separate frame supports rugged performance and heavy loads.
Conclusion: Choosing the Right Frame Structure
Selecting the right frame structure depends on the vehicle's intended use and performance priorities, with unibody frames offering lightweight design and improved fuel efficiency ideal for passenger cars and crossovers, while separate frames provide superior durability and off-road capability favored in trucks and SUVs. Factors such as safety ratings, ease of repair, and manufacturing costs also influence the decision, as unibody frames integrate crumple zones for enhanced crash protection whereas separate frames allow for easier component replacement. Ultimately, evaluating the balance between structural rigidity, ride comfort, and application-specific demands guides the optimal choice between unibody and separate frame designs.
