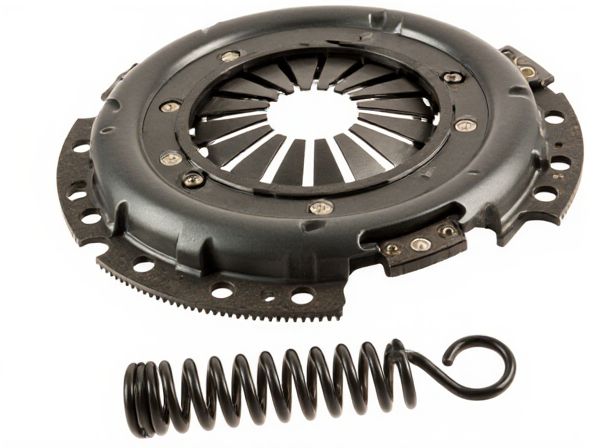

Photo illustration: Diaphragm Spring Clutch vs Coil Spring Clutch
Diaphragm spring clutches offer a compact design with uniform pressure distribution, enhancing durability and smoother engagement compared to coil spring clutches. Coil spring clutches use multiple springs that can provide a more progressive engagement but may require more maintenance due to uneven spring wear. Your choice depends on the application requirements for longevity, performance, and ease of maintenance.
Table of Comparison
| Feature | Diaphragm Spring Clutch | Coil Spring Clutch |
|---|---|---|
| Spring Type | Single diaphragm spring | Multiple coil springs |
| Clamping Force | Uniform, high clamping force | Variable, generally lower clamping force |
| Pedal Effort | Lower pedal effort required | Higher pedal effort required |
| Durability | Longer lifespan, better wear resistance | Moderate durability, frequent adjustment needed |
| Heat Dissipation | Efficient heat dissipation | Less efficient heat dissipation |
| Maintenance | Low maintenance | Requires regular adjustment and maintenance |
| Common Applications | Modern vehicles, performance cars | Older models, heavy-duty vehicles |
| Cost | Higher initial cost | Lower initial cost |
Introduction to Clutch Systems
Clutch systems play a crucial role in vehicle power transmission by engaging and disengaging the engine from the drivetrain. Diaphragm spring clutches utilize a conical spring plate to apply pressure, offering consistent force and ease of operation, while coil spring clutches rely on multiple coil springs providing segmented pressure points. Understanding these fundamental differences is essential for optimizing clutch performance, durability, and responsiveness in various automotive applications.
Overview: Diaphragm Spring Clutch
Diaphragm spring clutches utilize a single conical diaphragm spring to engage and disengage the clutch mechanism, offering uniform pressure distribution and smoother operation compared to coil spring clutches. This design reduces wear and maintenance frequency while enhancing vehicle performance by providing consistent pedal feel and responsiveness. Diaphragm spring clutches are commonly preferred in modern automotive applications due to their compact size, lightweight structure, and efficient torque transfer capabilities.
Overview: Coil Spring Clutch
Coil spring clutches use multiple coil springs arranged around the hub to engage and disengage the clutch, providing consistent pressure and smooth operation. This design enhances durability by evenly distributing load, making it suitable for heavy-duty applications with frequent engagement cycles. The coil spring clutch also offers improved heat dissipation compared to diaphragm spring clutches, reducing the risk of overheating and extending clutch lifespan.
Key Structural Differences
Diaphragm spring clutches utilize a single diaphragm-shaped spring that provides consistent axial force, offering a more compact and lighter design compared to coil spring clutches, which use multiple coil springs arranged around the pressure plate to generate clamping force. The diaphragm spring's uniform pressure distribution results in smoother engagement and longer service life, whereas coil spring clutches tend to experience uneven wear due to varying spring tension across the plate. Structurally, diaphragm spring clutches have fewer moving parts and reduced complexity, leading to improved reliability and easier maintenance relative to the multi-spring coil spring clutch assemblies.
Performance Comparison
Diaphragm spring clutches offer superior pedal feel and consistent clamping force, resulting in smoother engagement and longer service life compared to coil spring clutches. Coil spring clutches typically have a more linear torque distribution but can experience faster wear due to uneven spring pressure and less effective heat dissipation. Performance metrics such as torque capacity, durability, and maintenance intervals consistently favor diaphragm spring designs in modern automotive applications.
Durability and Maintenance
Diaphragm spring clutches offer superior durability due to their uniform pressure distribution and fewer moving parts, resulting in less wear and longer service life compared to coil spring clutches. Maintenance for diaphragm spring clutches is generally lower, as they require less frequent adjustment and replacement, while coil spring clutches often need more regular inspection and tension adjustments to prevent clutch slippage. Choosing a diaphragm spring clutch enhances vehicle reliability by minimizing downtime and maintenance costs.
Cost Analysis
Diaphragm spring clutches generally offer a more cost-effective solution due to fewer components and simplified assembly compared to coil spring clutches. The reduced manufacturing complexity leads to lower material and labor costs, making diaphragm spring clutches preferable for mass-produced vehicles. However, coil spring clutches may incur higher maintenance expenses over time due to their complex spring arrangement and potential for uneven wear.
Application Suitability
Diaphragm spring clutches are ideal for modern automotive applications requiring compact design, consistent pedal feel, and higher torque capacity, particularly in passenger cars and light trucks. Coil spring clutches suit heavy-duty vehicles and industrial machinery, offering robust performance under high load and easier maintenance due to their simple structure. Selection depends on the specific vehicle type, torque requirements, and space constraints, with diaphragm springs preferred for efficiency and coil springs favored for durability.
Pros and Cons Summary
Diaphragm spring clutches offer a compact design with consistent pressure distribution, providing smoother engagement and longer service life but can be more expensive and harder to replace. Coil spring clutches are typically simpler and less costly, with easier maintenance, but may suffer from uneven pressure and faster wear. Choosing between them depends on priorities like cost efficiency, durability, and ease of repair.
Choosing the Right Clutch
Choosing the right clutch between diaphragm spring and coil spring types depends on application requirements such as load capacity, pedal effort, and space constraints. Diaphragm spring clutches offer lighter pedal effort and more consistent engagement, making them ideal for modern vehicles demanding smooth operation and durability. Coil spring clutches, while typically simpler and less expensive, are better suited for applications with lower engagement cycles and less stringent performance needs.
