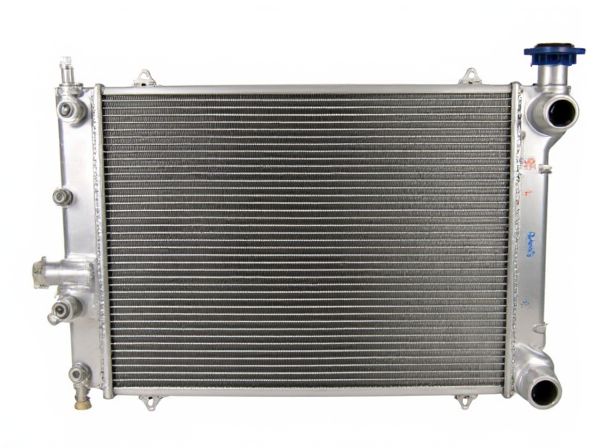

Photo illustration: Internal Transmission Cooler Radiator vs External Transmission Cooler Radiator
Internal transmission cooler radiators are integrated within the vehicle's radiator, providing efficient heat dissipation by using the engine coolant to cool the transmission fluid. External transmission cooler radiators are separate units mounted outside the radiator, offering enhanced cooling capacity for heavy-duty applications or vehicles towing heavy loads. Choosing the right cooler can improve your transmission's performance and lifespan by preventing overheating under demanding conditions.
Table of Comparison
| Feature | Internal Transmission Cooler Radiator | External Transmission Cooler Radiator |
|---|---|---|
| Location | Integrated within the main radiator | Mounted separately from the main radiator |
| Cooling Efficiency | Moderate cooling capability | Enhanced cooling performance |
| Heat Dissipation | Relies on radiator coolant flow | Direct airflow exposure improves dissipation |
| Installation | Factory-installed, compact design | Aftermarket or upgrade installation |
| Maintenance | Less accessible, integrated system | Easier access for inspection and repair |
| Cost | Lower initial cost | Higher cost due to separate unit |
| Application | Standard passenger vehicles | Heavy-duty, towing, or performance vehicles |
Introduction to Transmission Cooler Radiators
Transmission cooler radiators regulate the temperature of transmission fluid to prevent overheating and extend the lifespan of the transmission system. Internal transmission coolers are integrated within the vehicle's radiator, using engine coolant to dissipate heat efficiently within a compact design. External transmission coolers function as separate units, often mounted in front of the main radiator, providing enhanced cooling capacity for heavy-duty or high-performance applications.
What Is an Internal Transmission Cooler Radiator?
An internal transmission cooler radiator is a component integrated within the vehicle's engine radiator that uses the engine coolant to dissipate heat from the transmission fluid. This design allows for efficient heat exchange by circulating transmission fluid through a small, separate channel inside the radiator, maintaining optimal transmission temperature during operation. Internal coolers are beneficial for standard driving conditions but may be less effective than external coolers in extreme or heavy-duty applications requiring additional cooling capacity.
What Is an External Transmission Cooler Radiator?
An external transmission cooler radiator is a separate, standalone unit designed to dissipate heat from the transmission fluid outside the main radiator, providing enhanced cooling efficiency especially under heavy-duty or high-temperature conditions. It connects to the transmission system through dedicated lines, allowing better heat exchange and helping to prevent transmission overheating and fluid breakdown. Compared to internal coolers, external transmission coolers offer superior temperature control and increased transmission lifespan by reducing thermal stress more effectively.
Key Differences Between Internal and External Transmission Coolers
Internal transmission coolers are integrated within the vehicle's radiator, utilizing engine coolant to regulate transmission fluid temperature efficiently during normal driving conditions. External transmission coolers are standalone units mounted separately, providing enhanced cooling capacity crucial for heavy-duty applications or high-performance vehicles exposed to increased heat loads. The key difference lies in cooling efficiency and capacity, with external coolers offering superior heat dissipation, preventing transmission overheating under demanding operational stresses.
Cooling Efficiency: Internal vs. External Radiators
Internal transmission cooler radiators typically offer moderate cooling efficiency by utilizing the vehicle's existing radiator system, allowing engine coolant to absorb heat from the transmission fluid but often limited by the engine's operating temperature. External transmission cooler radiators provide superior cooling efficiency by circulating transmission fluid through a dedicated cooling unit exposed directly to ambient air, enhancing heat dissipation and preventing overheating under heavy load or extreme driving conditions. Vehicles subjected to high towing loads or prolonged intense driving benefit significantly from external coolers, which reduce transmission fluid temperatures more effectively than internal systems.
Installation Process and Requirements
Internal transmission cooler radiators are integrated within the radiator unit, offering a compact installation process that requires minimal modifications and uses existing coolant lines, reducing the need for additional mounting hardware or external plumbing. External transmission cooler radiators demand a separate mounting location, often requiring custom brackets and careful routing of transmission fluid lines to ensure proper flow and cooling efficiency, increasing installation complexity and time. Vehicle compatibility, available space, and cooling capacity must be carefully evaluated to determine the optimal cooler type and installation method for performance and reliability.
Cost Comparison: Internal vs. External Coolers
Internal transmission cooler radiators are typically more cost-effective upfront since they are integrated within the vehicle's radiator, reducing the need for extra components and installation labor. External transmission cooler radiators often involve higher initial costs due to the separate unit and additional plumbing required but can provide enhanced cooling performance, potentially lowering long-term maintenance expenses. Choosing between internal and external coolers depends on budget constraints and the vehicle's thermal management needs, with internal coolers favored for economy and external coolers preferred for heavy-duty or high-performance applications.
Maintenance and Longevity Considerations
Internal transmission cooler radiators typically require less frequent maintenance due to their integrated design, which reduces exposure to external contaminants and physical damage. External transmission cooler radiators offer easier access for inspection and cleaning, allowing for proactive maintenance that can extend the transmission's lifespan. Selecting an external cooler often facilitates better heat dissipation, potentially enhancing transmission longevity, but demands regular checks to prevent clogging or leaks.
Suitability for Different Vehicle Types and Uses
Internal transmission cooler radiators are best suited for passenger cars and light-duty vehicles where space constraints and moderate transmission heat dissipation needs are typical, offering integrated cooling within the radiator assembly. External transmission cooler radiators provide enhanced cooling capacity ideal for heavy-duty trucks, towing vehicles, and off-road applications, where higher transmission temperatures require additional heat exchange beyond the internal system. Selecting between internal and external coolers depends on vehicle use intensity, transmission load, and available engine bay space to optimize transmission performance and longevity.
Which Transmission Cooler Radiator Is Right for You?
Choosing between an internal transmission cooler radiator and an external transmission cooler radiator depends on your vehicle's specific cooling needs and driving conditions. Internal coolers are integrated within the radiator, offering sufficient cooling for standard driving and light towing without additional installations, while external coolers provide enhanced cooling capacity by attaching separately to the radiator, ideal for heavy-duty towing, high-performance vehicles, or extreme temperatures. Evaluating factors such as transmission fluid temperature management, towing frequency, and engine load will guide you in selecting the most effective transmission cooler radiator for optimal vehicle performance and longevity.
