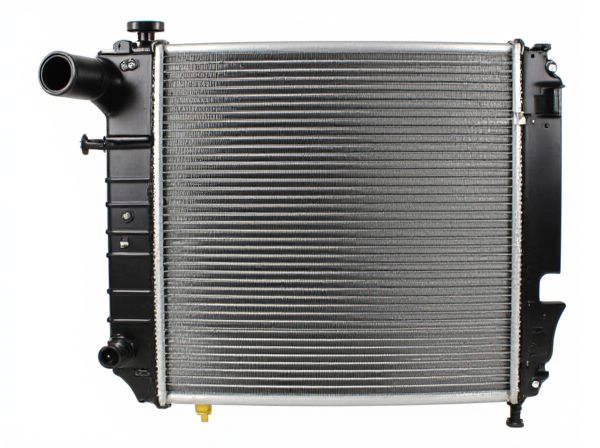

Photo illustration: Tube and Fin Radiator vs Plate and Fin Radiator
Tube and fin radiators excel in applications requiring high durability and efficient heat transfer in heavy-duty environments, using round tubes surrounded by fins to maximize airflow and cooling. Plate and fin radiators, on the other hand, offer compact design and increased surface area with their flat plates and fin assembly, making them ideal for space-constrained systems demanding effective thermal management. Your choice depends on whether you prioritize rugged performance or a more compact, efficient cooling solution.
Table of Comparison
| Feature | Tube and Fin Radiator | Plate and Fin Radiator |
|---|---|---|
| Design | Round tubes with fins for heat dissipation | Flat plates with fins, compact layout |
| Heat Transfer Efficiency | Good performance, suitable for various conditions | Higher efficiency due to increased surface contact |
| Weight | Heavier due to tube construction | Lighter and more compact |
| Durability | Robust, resistant to vibrations | Less tolerant to mechanical stress |
| Cost | Generally lower cost | Higher manufacture cost |
| Maintenance | Easy to clean and repair | More difficult to service |
| Application | Common in heavy-duty vehicles and older models | Preferred for modern, lightweight vehicles |
Introduction to Tube and Fin vs Plate and Fin Radiators
Tube and fin radiators feature cylindrical tubes attached to aluminum fins, promoting efficient heat transfer through forced or natural convection, ideal for automotive and HVAC applications requiring high durability. Plate and fin radiators utilize flat plates combined with fins, offering a compact design with enhanced surface area, that excels in low-weight and space-constrained environments. The choice between tube and fin versus plate and fin radiators depends on factors like heat transfer efficiency, pressure drop, manufacturing complexity, and application-specific thermal management requirements.
How Tube and Fin Radiators Work
Tube and fin radiators operate by circulating a hot fluid through metal tubes, which transfer heat to thin, closely spaced fins attached to the tubes, increasing surface area for efficient heat dissipation into the surrounding air. These radiators rely on convection to carry heat away from the fins, with airflow enhancing the cooling effect, commonly used in HVAC systems and automotive engines. The design optimizes heat transfer rates by maximizing the contact area between the heated tubes and the moving air.
How Plate and Fin Radiators Function
Plate and fin radiators enhance heat transfer by forcing air through a series of thin, closely spaced metal fins attached to flat plates, maximizing surface area for thermal exchange. The flat plates conduct heat from the fluid inside, while the fins promote rapid heat dissipation into the surrounding air through increased aerodynamic efficiency. This design is particularly effective in applications requiring compact, lightweight radiators with high heat transfer rates, such as automotive cooling and HVAC systems.
Key Design Differences Between Tube and Fin and Plate and Fin Radiators
Tube and fin radiators feature circular or oval tubes arranged in rows with attached aluminum fins, optimizing heat transfer through increased surface area and airflow. Plate and fin radiators utilize flat, plate-like channels combined with fin structures, resulting in a more compact design that enhances heat exchange efficiency in limited spaces. Key design differences include tube geometry, fin arrangement, and overall size, which influence thermal performance, pressure drop, and application suitability in HVAC and automotive cooling systems.
Heat Dissipation Efficiency Comparison
Tube and fin radiators provide higher heat dissipation efficiency in applications requiring robust airflow management, utilizing larger surface areas through round tubes and extended fins to maximize heat transfer. Plate and fin radiators, designed with flat plates and closely spaced fins, offer improved thermal conductivity and compactness, enhancing heat dissipation in constrained spaces. Comparative studies reveal tube and fin radiators excel in high-temperature, high-flow conditions, while plate and fin models perform better in low airflow scenarios, balancing efficiency with size and weight considerations.
Durability and Longevity of Each Radiator Type
Tube and fin radiators typically offer greater durability due to their robust construction with thicker tubes and fins, ideal for heavy-duty applications exposed to harsh conditions. Plate and fin radiators, while more compact and efficient, use thinner plates that may be more susceptible to corrosion and wear over time, potentially reducing longevity. Proper maintenance and material quality significantly influence the lifespan of both radiator types, but tube and fin designs generally provide enhanced durability and extended service life in demanding environments.
Weight and Size Considerations
Tube and fin radiators typically have a bulkier design but offer robust heat transfer, making them heavier and larger compared to plate and fin radiators. Plate and fin radiators feature a compact, lightweight structure ideal for applications where space and weight are critical constraints. Selecting between the two depends on balancing thermal performance with the need for reduced size and weight, as plate and fin models excel in tight, weight-sensitive environments.
Cost and Maintenance Factors
Tube and fin radiators generally have lower initial costs due to simpler manufacturing processes and commonly available materials, making them a cost-effective option for large-scale industrial applications. Plate and fin radiators offer enhanced heat transfer efficiency but tend to require higher upfront investment and more frequent maintenance to prevent fouling and corrosion in tightly packed fin structures. Maintenance of tube and fin radiators is typically easier and less costly, with straightforward cleaning procedures compared to the more delicate plate and fin designs that demand specialized care to sustain optimal thermal performance.
Best Applications for Tube and Fin vs Plate and Fin Radiators
Tube and fin radiators excel in HVAC systems requiring high heat transfer efficiency with variable airflow, such as commercial and industrial air handlers or refrigeration units due to their robust construction and ease of maintenance. Plate and fin radiators are best suited for applications demanding compact design and precise temperature control, including electronics cooling and smaller residential HVAC units, where space constraints and lower air velocities are common. Selecting between these radiators depends on factors like airflow rates, space availability, and thermal load, with tube and fin optimal for larger-scale, high airflow scenarios and plate and fin ideal for compact, low airflow environments.
Final Verdict: Choosing the Right Radiator for Your Needs
Tube and fin radiators excel in heavy-duty applications, offering superior heat transfer through robust tubes and aluminum fins, ideal for automotive and industrial cooling. Plate and fin radiators provide a compact, lightweight design with efficient heat dissipation, suitable for HVAC systems and light machinery requiring space-saving solutions. The final verdict depends on your specific cooling requirements: choose tube and fin radiators for maximum durability and high thermal performance, while plate and fin radiators fit better when efficiency and compactness are prioritized.
