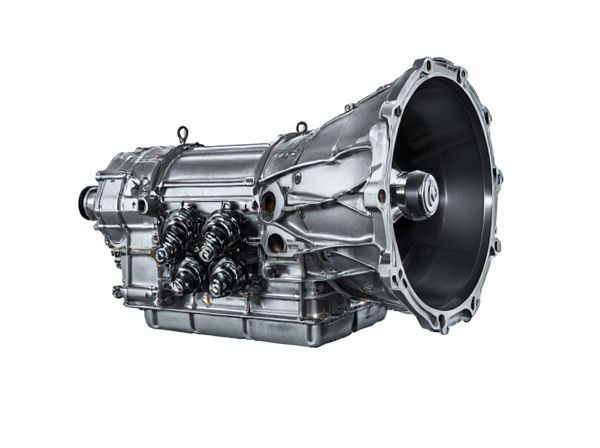

Photo illustration: Electrohydraulic Transmission vs Electromechanical Transmission
Electrohydraulic transmission combines hydraulic fluid power with electrical controls to deliver smooth torque conversion and precise control, ideal for heavy-duty applications with variable loads. Electromechanical transmission relies on electric motors and mechanical components, offering higher efficiency, reduced maintenance, and faster response times in lighter or more compact machinery. Your choice depends on the specific performance requirements, load capacity, and operational environment of the equipment.
Table of Comparison
| Feature | Electrohydraulic Transmission | Electromechanical Transmission |
|---|---|---|
| Operation | Hydraulic fluid controls gear shifts via electric valves | Electric motors directly control gear mechanisms |
| Efficiency | Moderate, energy lost in hydraulic fluid dynamics | High, minimal energy loss due to direct actuation |
| Response Time | Slower, limited by hydraulic fluid flow | Faster, instant electric motor response |
| Maintenance | Higher, requires hydraulic fluid checks and valve servicing | Lower, fewer moving parts and no fluid maintenance |
| Durability | Good, affected by fluid contamination and seal wear | Excellent, electric components with longer lifespan |
| Noise | Moderate, hydraulic pump noise present | Low, quieter electric actuation |
| Common Use | Traditional automatic transmissions in internal combustion vehicles | Modern EVs and hybrid vehicles |
Introduction to Power Transmission Systems
Electrohydraulic transmission systems utilize hydraulic fluids to transfer power through pressure and flow control, offering precise torque modulation and high power density for heavy equipment applications. Electromechanical transmission systems convert electrical energy into mechanical motion using motors and gearboxes, providing high efficiency and rapid response in robotics and automotive sectors. Both systems play crucial roles in power transmission, with selection depending on factors such as load capacity, control complexity, and operational environment.
What is Electrohydraulic Transmission?
Electrohydraulic transmission (EHT) uses hydraulic fluid controlled by electronic systems to transfer power efficiently in heavy machinery and vehicle applications. This type of transmission combines hydraulic pumps, valves, and actuators with electronic sensors and controllers, allowing precise modulation of torque and speed. EHT offers high power density, smooth operation under varying loads, and enhanced responsiveness compared to traditional mechanical transmissions.
What is Electromechanical Transmission?
Electromechanical transmission converts electrical energy directly into mechanical motion using components such as motors, gears, and shafts, enabling precise speed and torque control in various applications. Unlike electrohydraulic transmission, which uses hydraulic fluids to transmit power, electromechanical systems offer higher efficiency, faster response times, and reduced maintenance requirements. Common uses include electric vehicles, robotics, and industrial automation where smooth and accurate mechanical output is critical.
Key Components and Working Principles
Electrohydraulic transmission utilizes hydraulic fluid controlled by electronic signals to transfer power, featuring key components such as hydraulic pumps, valves, and actuators that convert electrical input into hydraulic pressure for smooth torque delivery. Electromechanical transmission relies on electric motors and mechanical gears or clutches to transmit power, with components including stators, rotors, and gearboxes that directly convert electrical energy into mechanical motion. The working principle of electrohydraulic systems centers on modulating fluid flow under electronic control to achieve variable power output, while electromechanical systems depend on electromagnetic forces to create rotational movement transmitted through mechanical linkages.
Efficiency Comparison: Electrohydraulic vs Electromechanical
Electromechanical transmissions generally offer higher energy efficiency compared to electrohydraulic systems due to lower energy losses in mechanical power transfer and reduced fluid friction. Electrohydraulic transmissions suffer from efficiency drops caused by hydraulic fluid compressibility, leakage, and heat generation, typically resulting in 70-85% efficiency versus 85-95% for electromechanical systems. This efficiency gap impacts overall system performance, operating costs, and energy consumption in applications such as heavy machinery and electric vehicles.
Performance Metrics and Operational Capabilities
Electrohydraulic transmission offers superior torque density and smoother power modulation, making it ideal for heavy-duty applications requiring precise control under varying load conditions. Electromechanical transmission excels in efficiency and rapid response times, delivering better energy conservation and faster dynamic adjustments in lightweight or high-speed systems. Performance metrics such as power-to-weight ratio, response time, and continuous load capacity highlight the operational advantages of each system depending on application demands and environmental constraints.
Applications in Industrial and Automotive Sectors
Electrohydraulic transmission offers superior torque control and robustness, making it ideal for heavy-duty industrial machinery and construction equipment where high power density and precise force modulation are critical. Electromechanical transmission excels in automotive applications, providing efficient energy conversion, reduced maintenance, and seamless integration with electric drivetrains for hybrid and electric vehicles. Industrial sectors benefit from electrohydraulic systems in hydraulic presses and robotics, while electromechanical solutions dominate electric vehicles and advanced automated assembly lines due to their precision and energy efficiency.
Advantages and Limitations of Each System
Electrohydraulic transmission offers high torque density and smooth power delivery, making it ideal for heavy-duty applications, but it often suffers from energy losses due to fluid friction and requires regular maintenance to prevent leaks. Electromechanical transmission provides higher efficiency with precise control and reduced maintenance needs, though it may have limitations in torque capacity and can be less effective in environments requiring shock load absorption. Both systems must be selected based on application-specific performance requirements, balancing efficiency, durability, and operational complexity.
Recent Innovations and Technological Trends
Recent innovations in electrohydraulic transmission emphasize enhanced energy efficiency through advanced variable displacement pumps and digital control systems, enabling precise torque management and reduced fuel consumption. Electromechanical transmission advances highlight the integration of power electronics and high-torque electric motors, facilitating seamless gear shifts and improved regenerative braking capabilities. Emerging technological trends include the adoption of smart sensors and AI-driven predictive maintenance algorithms that optimize performance and extend system longevity in both transmission types.
Choosing the Right Transmission: Factors to Consider
Selecting the right transmission involves evaluating efficiency, power density, and maintenance requirements, where electrohydraulic transmissions excel in high force applications with fluid power modulation, while electromechanical transmissions offer precise control and energy efficiency in lighter loads. Key factors include operational environment, load variability, and system complexity, with electrohydraulic systems favored for rugged, heavy-duty scenarios and electromechanical systems preferred for compact, low-maintenance designs. Cost implications, response time, and integration with existing control systems also influence the decision to ensure optimal performance and lifecycle value.
