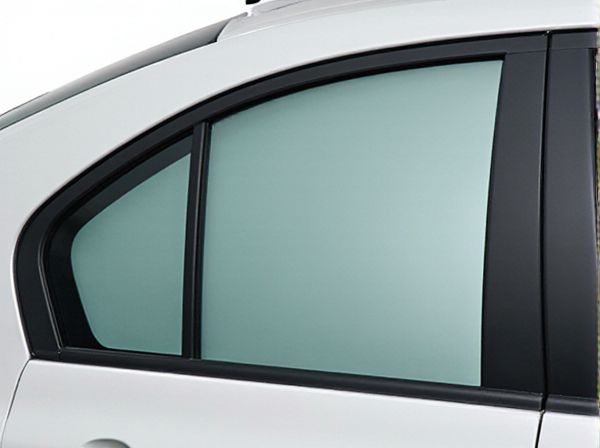

Photo illustration: Laminated Glass vs Tempered Glass
Laminated glass offers enhanced safety by holding together when shattered, reducing the risk of injury, while tempered glass is designed to break into small, less harmful pieces. Your choice depends on the application; laminated glass is ideal for sound insulation and impact resistance, whereas tempered glass provides superior strength and heat resistance. Both types improve safety and durability but serve different functional needs in construction and automotive industries.
Table of Comparison
| Feature | Laminated Glass | Tempered Glass |
|---|---|---|
| Composition | Two glass layers bonded with a plastic interlayer (PVB) | Single glass sheet chemically and heat treated for strength |
| Safety | Holds shards together, reduces injury risk on breakage | Breaks into small blunt pieces to minimize cuts |
| Sound Insulation | Excellent noise reduction | Moderate noise reduction |
| UV Protection | Blocks up to 99% UV rays | Limited UV protection |
| Common Use in Cars | Front windshield, sunroofs | Side windows, rear windows |
| Cost | Higher cost due to layered structure | Lower cost, simpler manufacturing process |
| Durability | Resistant to penetration and impact | High impact resistance but vulnerable to sharp impacts |
Introduction to Laminated and Tempered Glass
Laminated glass consists of two or more glass layers bonded with an interlayer, providing enhanced safety by holding shards together upon impact. Tempered glass is heat-treated to increase strength and shatters into small, blunt pieces to reduce injury risk. Both types are widely used in automotive, architectural, and safety applications due to their distinct durability and protective properties.
Composition and Manufacturing Process
Laminated glass consists of two or more layers of glass bonded with an interlayer, typically polyvinyl butyral (PVB), during a controlled heat and pressure process, enhancing safety by holding shards together upon impact. Tempered glass undergoes a rapid heating and cooling process called tempering, which creates balanced internal stresses, increasing strength and causing it to break into small, less harmful pieces. The key difference lies in laminated glass's layered structure for impact absorption, while tempered glass relies on thermal treatment for durability and safety.
Strength and Durability Comparison
Laminated glass consists of two or more glass layers bonded with an interlayer, providing enhanced impact resistance and preventing shattering by holding fragments together. Tempered glass undergoes a heat treatment process that increases strength up to four times that of standard glass, making it highly resistant to impact and thermal stress but prone to shattering into small, blunt pieces upon breakage. In terms of durability, laminated glass offers superior safety through its structural integrity after damage, while tempered glass excels in strength but requires replacement after any significant break.
Safety Features and Impact Resistance
Laminated glass consists of two or more layers of glass with an interlayer that holds the shards together, providing enhanced safety by preventing glass from shattering upon impact. Tempered glass undergoes a thermal treatment that increases its strength and causes it to break into small, blunt pieces, reducing the risk of injury. In terms of impact resistance, laminated glass offers superior protection against penetration and maintains structural integrity, while tempered glass excels in withstanding high impact forces but can fully break under severe stress.
Sound and Heat Insulation Properties
Laminated glass offers superior sound insulation due to its interlayer, which dampens noise transmission, making it ideal for environments requiring noise reduction. Tempered glass, while stronger and more impact-resistant, provides less effective sound insulation because it lacks this cushioning layer. In terms of heat insulation, laminated glass also performs better by reducing heat transfer through its PVB or SGP interlayer, enhancing energy efficiency compared to tempered glass, which mainly provides safety benefits with minimal thermal resistance.
Applications in Architecture and Automotive
Laminated glass is widely used in architectural applications such as skylights, facades, and balustrades due to its superior safety features and sound insulation properties, as it holds together when shattered. Tempered glass is preferred in automotive windows and building doors because of its high strength and ability to break into small, blunt pieces, reducing injury risk. Both types play crucial roles in safety and durability standards, with laminated glass excelling in impact resistance and tempered glass in thermal and mechanical strength.
Cost Analysis and Budget Considerations
Laminated glass typically costs 20-30% more than tempered glass due to its multi-layer construction that enhances safety and sound insulation. Budget considerations favor tempered glass when lower upfront costs are critical, especially for large-scale projects or budget-sensitive applications. Long-term cost benefits of laminated glass include reduced replacement expenses and enhanced security, making it a cost-effective choice despite higher initial investment.
Maintenance and Longevity
Laminated glass features a plastic interlayer that helps retain glass fragments upon breakage, enhancing durability and simplifying maintenance by preventing shattered pieces from dispersing. Tempered glass, known for its strength and thermal resistance, is more resistant to scratches but can shatter completely under significant impact, requiring full replacement. Both glass types offer long-lasting performance; laminated glass typically requires less frequent replacement due to its ability to hold together even when cracked, while tempered glass provides superior resistance to wear and heat over time.
Aesthetic Options and Customization
Laminated glass offers extensive aesthetic options with the ability to incorporate decorative interlayers featuring colors, patterns, and textures, providing unique customization possibilities for both residential and commercial applications. Tempered glass, while primarily valued for safety and strength, can be enhanced with various finishes such as frosted, tinted, or printed surfaces, allowing for versatile design choices without compromising durability. Both glass types support tailored shapes, sizes, and treatments, enabling architects and designers to achieve specific visual effects and functional requirements.
Environmental Impact and Sustainability
Laminated glass offers enhanced durability and safety by holding shattered pieces together, reducing waste and environmental damage during breakage compared to tempered glass, which breaks into small fragments. Its production process generally involves lower energy consumption and incorporates recycled materials, contributing to sustainability goals. Tempered glass, while stronger under stress, requires higher energy for heat treatment and often lacks recyclability, making laminated glass a more eco-friendly option in construction and automotive industries.
