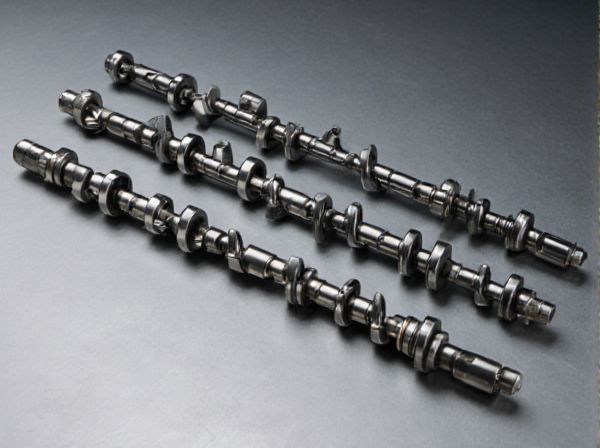

Photo illustration: Wide Lobe Separation Camshaft vs Narrow Lobe Separation Camshaft
Wide lobe separation camshafts provide a smoother idle and better mid-range torque, improving overall drivability in street engines. Narrow lobe separation camshafts increase valve overlap, which enhances high-RPM power and exhaust scavenging, ideal for racing and performance applications. Choosing the right camshaft depends on your engine's intended use and desired power characteristics.
Table of Comparison
| Feature | Wide Lobe Separation Camshaft | Narrow Lobe Separation Camshaft |
|---|---|---|
| Lobe Separation Angle | Typically 112deg or more | Typically 106deg or less |
| Valve Overlap | Reduced overlap for smoother idle and better emissions | Increased overlap improves exhaust scavenging and power |
| Performance Focus | Better mid-range torque and street drivability | Optimized for high RPM power and racing applications |
| Idle Quality | Smoother, more stable idle | Rougher idle due to larger valve overlap |
| Emissions | Lower emissions due to reduced overlap | Higher emissions as a result of increased overlap |
| Fuel Efficiency | Improved fuel economy in street driving | Reduced fuel efficiency at low RPMs |
Introduction to Camshaft Lobe Separation
Camshaft lobe separation angle (LSA) significantly influences engine performance by controlling valve timing overlap. Wide lobe separation camshafts, typically featuring an LSA of 112 to 118 degrees, provide smoother idle and increased midrange torque, ideal for street applications. Narrow lobe separation camshafts, with an LSA from 106 to 110 degrees, enhance valve overlap for improved high-RPM power and increased exhaust scavenging, preferred in racing and high-performance engines.
What is Wide Lobe Separation?
Wide lobe separation refers to the angle between the intake and exhaust camshaft lobes, typically ranging from 110 to 114 degrees, which promotes smoother idle and broader power bands. This wider lobe separation enhances low-end torque and drivability by reducing valve overlap, making it suitable for street performance engines. The increased clearance between lobes allows for better vacuum stability and less combustion overlap compared to narrow lobe separation camshafts.
What is Narrow Lobe Separation?
Narrow lobe separation in a camshaft refers to the angle between the intake and exhaust cam lobes being smaller, typically around 104 to 108 degrees, which enhances overlap and improves low-end torque and throttle response. This configuration increases valve overlap time, allowing more exhaust gases to be scavenged and fresh air-fuel mixture to enter the combustion chamber efficiently at lower RPMs. Narrow lobe separation is preferred in street performance engines aiming for better drivability and mid-range power.
Performance Differences Between Wide and Narrow Lobe Separation
Wide lobe separation camshafts typically provide a smoother idle, broader powerband, and better high-RPM performance by reducing valve overlap and improving mid-range torque. Narrow lobe separation camshafts increase valve overlap, resulting in improved low-end torque and increased cylinder scavenging for better responsiveness and power at low to mid RPM ranges. Performance tuning often balances lobe separation angle to optimize torque delivery and power characteristics tailored to specific driving or racing conditions.
Effects on Engine Idle Quality
Wide lobe separation camshafts create a broader angle between intake and exhaust lobes, resulting in smoother engine idle with reduced overlap and decreased roughness. Narrow lobe separation camshafts increase valve overlap, leading to a more aggressive idle characterized by higher exhaust emissions and potential roughness at low RPM. Engine idle quality improves with wide lobe separation due to minimized valve overlap, enhancing stability and drivability during low-speed operation.
Impact on Powerband and Torque Curves
Wide lobe separation camshafts typically produce a broader powerband with smoother torque delivery, enhancing mid-range RPM performance and drivability. Narrow lobe separation camshafts create a more aggressive valve overlap, resulting in higher peak power and torque at the expense of a narrower powerband and reduced low-end torque. Choosing between wide and narrow lobe separation affects the engine's torque curve shape and powerband width, influencing overall performance characteristics.
Emissions and Fuel Efficiency Considerations
Wide lobe separation camshafts generally promote better fuel efficiency by reducing overlap, which minimizes unburned fuel entering the exhaust and lowers hydrocarbon emissions. Narrow lobe separation camshafts increase valve overlap, enhancing scavenging at higher RPMs but potentially increasing emissions due to higher unburned fuel in the exhaust stream. Optimizing lobe separation angle is crucial for balancing improved combustion efficiency with emissions regulations and fuel economy goals.
Suitability for Street vs Racing Applications
Wide lobe separation camshafts (LSA) typically offer broader power bands and smoother idling, making them ideal for street-driven vehicles where drivability and fuel efficiency are priorities. Narrow lobe separation camshafts improve valve overlap, enhancing high-RPM power and throttle response, which suits racing applications demanding maximum performance and aggressive engine characteristics. Choosing the correct camshaft lobe separation angle directly influences engine behavior, with wide LSA promoting torque spread and narrow LSA optimizing peak horsepower in competition environments.
Common Myths and Misconceptions
Wide lobe separation camshafts are often misunderstood to always sacrifice low-end torque for high-end power, while narrow lobe separation cams are believed to produce excessive overlap and rough idling exclusively. In reality, wide lobe separation angles (typically 112deg-116deg) can improve idle quality and mid-range torque by reducing valve overlap, whereas narrow angles (106deg-110deg) increase overlap for better top-end horsepower but may compromise idle smoothness. Many myths overlook how precise camshaft tuning and engine setup influence performance, making lobe separation one factor among many rather than a strict determinant of power characteristics.
How to Choose the Right Lobe Separation for Your Build
Choosing the right lobe separation angle (LSA) between wide and narrow camshafts depends on your engine's intended performance goals and operating conditions. Wide lobe separation angles (typically 112deg to 114deg) provide a broader power band, improved idle quality, and better vacuum, making them ideal for street and mild performance builds. Narrow lobe separation angles (around 106deg to 110deg) enhance valve overlap, increase top-end horsepower, and improve mid-to-high RPM power, making them suitable for high-performance and racing engines.
