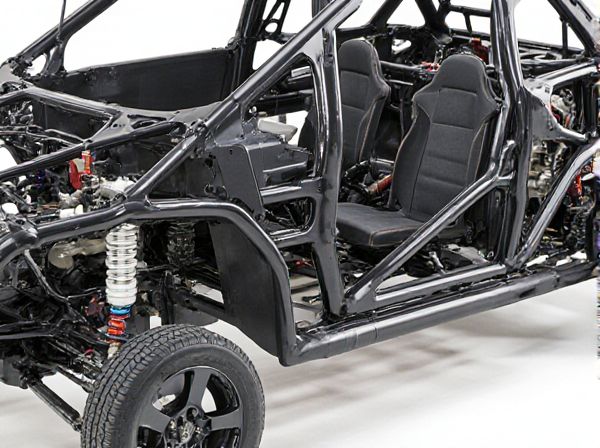

Photo illustration: Tubular Space Frame vs Perimeter Frame
Tubular space frames offer superior strength and rigidity by using a network of interconnected tubes that distribute forces evenly, enhancing vehicle handling and crash safety. Perimeter frames focus on a strong, box-like structure around the vehicle's outer edges, providing durability and simplicity but often at the cost of increased weight and less torsional stiffness. Your choice depends on whether you prioritize lightweight performance and precise handling or robust construction and ease of manufacturing.
Table of Comparison
| Feature | Tubular Space Frame | Perimeter Frame |
|---|---|---|
| Structure | Network of welded tubes forming a rigid skeleton | Frame follows the perimeter of the vehicle's body |
| Weight | Lightweight due to minimal material use | Heavier because of larger, continuous sections |
| Rigidity | High torsional stiffness for improved handling | Moderate rigidity, suitable for everyday use |
| Crash Safety | Effective energy absorption through tube deformation | Good crash protection via reinforced perimeter design |
| Manufacturing | Complex welding and assembly process | Simpler to manufacture with stamped steel sections |
| Cost | Higher due to labor intensity and material quality | Lower, benefits from mass production techniques |
| Applications | Motorsports, high-performance vehicles | Passenger cars, SUVs, mass-market vehicles |
Introduction to Motorcycle Frame Designs
Motorcycle frame designs primarily include tubular space frames and perimeter frames, each offering distinct structural benefits. Tubular space frames consist of a network of steel or aluminum tubes arranged in triangular sections, providing lightweight strength and flexibility ideal for off-road and classic motorcycles. Perimeter frames, often made from aluminum alloy, feature large twin beams running around the engine perimeter, delivering enhanced rigidity and superior handling for high-performance sportbikes.
What is a Tubular Space Frame?
A tubular space frame is a lightweight, high-strength chassis structure composed of numerous interconnected steel or aluminum tubes arranged in triangular units to evenly distribute stress and maximize rigidity. This design offers superior torsional stiffness and crash protection compared to perimeter frames, making it ideal for racing and high-performance vehicles. Engineers favor tubular space frames for their ability to reduce weight while maintaining structural integrity and enhancing handling precision.
What is a Perimeter Frame?
A perimeter frame is a vehicle chassis design where the main structural components form a rectangular loop around the vehicle's perimeter, providing enhanced rigidity and crash protection. This frame type efficiently distributes impact forces along the outer edges, improving occupant safety and structural stability. Unlike a tubular space frame that uses interconnected tubes for lightweight rigidity, perimeter frames prioritize durability and ease of manufacturing, commonly found in heavy-duty trucks and SUVs.
Material Composition and Construction Methods
Tubular space frames utilize interconnected steel or aluminum tubes forming a three-dimensional lattice, optimizing strength-to-weight ratio through triangulated structures that resist torsional and bending forces. Perimeter frames, commonly made of steel or aluminum extrusions, focus on reinforced side rails and cross members arranged in a rectangular layout, providing a robust base primarily designed for impact absorption. Construction methods for tubular space frames involve precision welding of individual tubes to create a rigid skeleton, while perimeter frames rely on stamping and welding of larger, flat metal sections to build the frame.
Strength and Rigidity Comparison
Tubular space frames offer superior strength and rigidity due to their triangulated structure, which evenly distributes stress and resists torsional flexing, making them ideal for high-performance and off-road applications. Perimeter frames, characterized by their boxed rails running along the vehicle's edges, provide rigidity primarily in bending but are generally heavier and less effective at torsional stiffness compared to tubular designs. Engineers often favor tubular space frames for race cars and lightweight vehicles where maximum chassis stiffness and strength-to-weight ratio are critical.
Weight and Performance Implications
Tubular space frames deliver superior torsional rigidity and lightweight characteristics by distributing stress evenly through interconnected tubes, enhancing handling and acceleration. Perimeter frames, often made from stamped or cast components, tend to be heavier but provide greater structural integrity and easier manufacturing, impacting overall vehicle weight negatively. Choosing a tubular space frame typically results in improved performance metrics due to weight reduction and increased chassis stiffness, crucial for high-performance and racing applications.
Cost and Manufacturing Considerations
Tubular space frames generally incur higher manufacturing costs due to the complexity of welding numerous tube joints and the precision required for alignment, whereas perimeter frames benefit from simpler construction processes and lower material expenses. The intricate design of tubular space frames demands skilled labor and longer production times, increasing overall expenses compared to the more straightforward stamping and welding techniques used for perimeter frames. Cost efficiency in perimeter frames makes them preferable for mass production, while tubular space frames are often chosen for specialized applications where performance justifies the additional investment.
Design Flexibility and Customization
Tubular space frames offer superior design flexibility and customization due to their three-dimensional framework, allowing engineers to tailor stiffness, weight distribution, and structural geometry precisely for performance needs. Perimeter frames, characterized by their rigid outer structure, provide less adaptability in complex shapes but excel in ease of manufacturing and repair. Tubular designs enable innovative configurations ideal for race cars and high-performance vehicles seeking optimized handling and safety.
Real-World Applications: Popular Models
The tubular space frame offers exceptional rigidity and lightweight characteristics, making it ideal for high-performance vehicles such as the Ford GT and Lotus Exige, where precision handling is crucial. Perimeter frames, used in models like the Chevrolet Silverado and Ford F-150, prioritize durability and impact resistance, suited for heavy-duty trucks and off-road conditions. Real-world applications highlight the tubular space frame's advantage in sports cars, while perimeter frames dominate in utility and rugged work vehicles.
Choosing the Right Frame for Your Motorcycle
Choosing the right motorcycle frame impacts handling, weight distribution, and durability, with tubular space frames offering superior rigidity and lightweight performance ideal for sport and racing motorcycles. Perimeter frames excel in providing balanced stiffness around the engine, enhancing stability and cornering precision, commonly favored in street and touring bikes. Evaluate riding style and performance needs to determine whether the tubular space frame's flexibility or the perimeter frame's stability aligns best with your motorcycle use.
