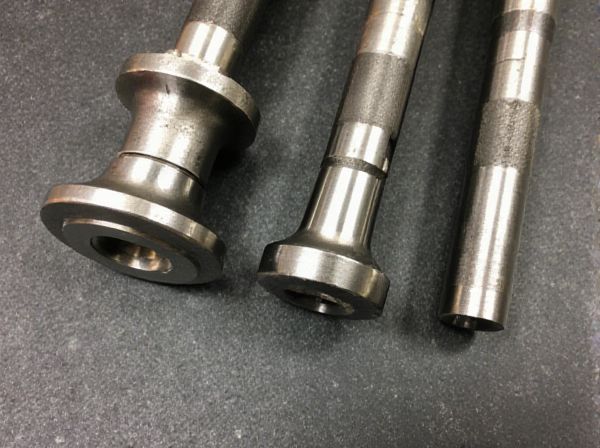

Photo illustration: Cross-Drilled Crankshaft vs Straight Drilled Crankshaft
Cross-drilled crankshafts offer improved oil flow and enhanced crankshaft cooling by allowing lubricant to reach critical bearing surfaces more efficiently. This design promotes better crankshaft durability and performance under high-stress conditions compared to straight-drilled crankshafts, which have a simpler oil passage layout. Choosing the right crankshaft can significantly impact your engine's reliability and overall efficiency.
Table of Comparison
| Feature | Cross-Drilled Crankshaft | Straight Drilled Crankshaft |
|---|---|---|
| Design | Holes drilled perpendicular to the axis, crossing main journals and crank pins | Holes drilled parallel to the crankshaft axis, running straight through journals |
| Oil Flow | Enhanced oil drilling for better lubrication and cooling | Direct oil passage promoting efficient lubrication |
| Weight | Slightly heavier due to complex drilling pattern | Lighter due to simpler straight holes |
| Stress Distribution | Potentially higher stress concentration at cross-drilled junctions | More uniform stress distribution along the shaft |
| Applications | High-performance engines requiring enhanced oil flow | Standard and performance engines favoring durability |
| Cost | Higher manufacturing cost due to complexity | Lower manufacturing cost with simpler design |
Introduction to Crankshaft Oil Passage Designs
Cross-drilled crankshafts feature oil passages drilled perpendicular to the crankshaft axis, allowing direct oil flow to critical bearing surfaces and enhancing lubrication under high-performance conditions. Straight drilled crankshafts have oil passages aligned parallel to the axis, providing a simpler and more traditional oiling path that is effective for standard engine applications. The choice between these designs impacts oil delivery efficiency, engine durability, and suitability for different operating environments.
What Is a Cross-Drilled Crankshaft?
A cross-drilled crankshaft features oil passages drilled perpendicular to each other, enhancing lubrication by allowing oil to flow more efficiently to critical bearing surfaces and connecting rods. This design reduces friction and heat buildup, improving engine durability and performance under high-stress conditions. Compared to straight drilled crankshafts, cross-drilled versions provide superior oil distribution, which is essential for high-revving or high-horsepower engines.
What Is a Straight Drilled Crankshaft?
A straight drilled crankshaft features oil passages drilled in a linear, direct path from the main bearing journals to the crankshaft's rod journals, facilitating efficient lubrication. Unlike cross-drilled designs, which have intersecting oil passages for improved oil flow and cooling, straight drilled crankshafts offer simpler manufacturing and typically lower production costs. This design is commonly used in standard engine applications where oil flow requirements are less demanding compared to high-performance engines.
Key Differences in Oil Flow Dynamics
Cross-drilled crankshafts feature angled oil passages that enhance lubrication by directing oil flow more efficiently to critical bearing surfaces, reducing friction and heat buildup. In contrast, straight drilled crankshafts have linear oil passages that provide a more direct but less evenly distributed oil flow, potentially leading to localized wear. The optimized oil flow dynamics in cross-drilled designs contribute to improved engine durability and performance under high-stress conditions.
Performance Advantages of Cross-Drilled Crankshafts
Cross-drilled crankshafts enhance engine performance by improving oil flow and lubrication, reducing bearing wear and increasing durability. Their design also offers better weight reduction and balance compared to straight drilled crankshafts, leading to smoother engine operation and higher RPM capability. These advantages result in increased power output and improved reliability, especially in high-performance and racing applications.
Benefits of Straight Drilled Crankshafts
Straight drilled crankshafts offer enhanced structural integrity by maintaining uniform wall thickness, reducing the risk of stress concentration and potential cracks. Their simpler design leads to improved oil flow efficiency and easier manufacturing processes, which can lower production costs and increase reliability. This design is especially beneficial in applications demanding high durability and consistent performance under heavy loads.
Wear, Durability, and Reliability Comparison
Cross-drilled crankshafts feature oil passages drilled perpendicular to the crankshaft axis, improving oil flow and reducing bearing wear by enhancing lubrication, which leads to increased durability and reliability under high-stress conditions. In contrast, straight drilled crankshafts have oil passages drilled along the axis, providing simpler manufacturing but less efficient oil distribution, resulting in potentially higher wear rates and reduced long-term reliability. The superior lubrication in cross-drilled designs minimizes friction and heat buildup, extending component lifespan and ensuring consistent performance in demanding engine applications.
Applications: Choosing the Right Crankshaft Design
Cross-drilled crankshafts are preferred in high-performance and racing applications due to their improved oil flow and cooling, which enhances bearing lubrication under extreme RPM conditions. Straight drilled crankshafts, being simpler and more cost-effective, are commonly used in standard production engines where durability and ease of maintenance are prioritized over maximum performance. Selecting the right crankshaft design depends on the engine's intended use, balancing performance requirements with manufacturing cost and reliability factors.
Common Myths and Misconceptions
Cross-drilled crankshafts are often mistaken as inherently weaker than straight drilled crankshafts, but modern engineering has demonstrated that cross-drilling improves oil flow and cooling without compromising strength. Some believe straight drilled crankshafts are always preferable for high-performance engines, yet this overlooks the enhanced lubrication benefits provided by cross-drilling, reducing bearing wear and increasing engine longevity. Misconceptions about increased material removal in cross-drilled crankshafts causing imbalance ignore precise manufacturing processes that ensure optimal balance for both designs.
Which Crankshaft Drilling Method Is Best for Your Engine?
Cross-drilled crankshafts feature oil passages drilled perpendicular to the main journals, enhancing oil flow to the connecting rod bearings and improving lubrication under high-performance conditions. Straight drilled crankshafts have oil holes drilled axially, which offer simpler machining and adequate lubrication for standard engines but may struggle in extreme RPM or elevated stress environments. For high-performance or racing engines, a cross-drilled crankshaft provides superior oiling and durability, while straight drilled crankshafts are often sufficient and cost-effective for everyday driving and moderate power applications.
