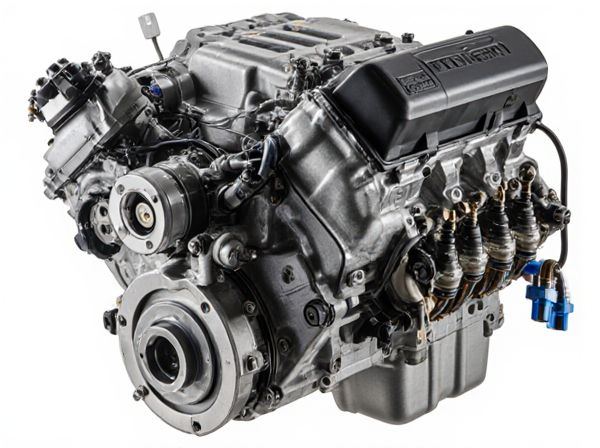

Photo illustration: Common Rail Injection vs Unit Injector
Common Rail Injection offers precise control over fuel pressure and timing, resulting in improved fuel efficiency, reduced emissions, and quieter engine operation compared to the Unit Injector system. Unit Injectors combine injection and pumping functions within each cylinder, providing high injection pressures but often at the cost of increased mechanical complexity and noise. Understanding the differences between these systems helps you choose the best fuel injection technology for optimal engine performance and durability.
Table of Comparison
| Feature | Common Rail Injection | Unit Injector |
|---|---|---|
| Injection System Type | Centralized high-pressure rail supplying injectors | Integrated injector-pump units per cylinder |
| Fuel Pressure | Up to 2,500 bar (varies by system) | Up to 2,200 bar |
| Injection Control | Electronic control with multiple injection events | Mechanical and electronic control, single or multiple injections |
| Emissions | Lower NOx and particulate emissions due to precise timing | Higher emissions compared to common rail |
| Fuel Efficiency | Higher efficiency via optimized injection | Moderate efficiency |
| Maintenance | Complex but less frequent maintenance for injectors | More frequent maintenance due to mechanical parts |
| Application | Modern diesel engines in passenger cars and trucks | Heavy-duty diesel engines, older vehicle models |
| Cost | Higher initial cost, cost-effective long-term | Lower initial cost, higher operational cost |
Introduction to Diesel Fuel Injection Systems
Diesel fuel injection systems primarily consist of Common Rail Injection and Unit Injector technologies, each designed to optimize fuel delivery for engine efficiency and emission control. Common Rail Injection utilizes a high-pressure shared rail to supply precise amounts of fuel to multiple cylinders, enabling better atomization and consistent injection timing. Unit Injector systems integrate injection and pressurization within a single unit per cylinder, offering robust pressure control but with less flexibility compared to the Common Rail system.
Overview of Common Rail Injection
Common Rail Injection is a modern fuel injection system that delivers highly precise control of fuel delivery and timing through a high-pressure rail and electronically controlled injectors. It operates independently of engine speed, enabling multiple injections per combustion cycle, which improves fuel efficiency and reduces emissions. This system contrasts with Unit Injector designs by separating the high-pressure pump from the injectors, allowing greater flexibility and performance optimization.
Overview of Unit Injector Systems
Unit injector systems integrate the injector nozzle and high-pressure pump into a single assembly, allowing precise control of fuel injection timing and pressure directly at each cylinder. This design eliminates the need for high-pressure common rails by generating pressure individually for every injection event, enhancing combustion efficiency and reducing emissions. The compact unit injector structure supports variable injection timing and multiple injections per cycle, contributing to improved engine performance and fuel economy compared to traditional injection systems.
Key Differences Between Common Rail and Unit Injector
Common Rail Injection systems maintain constant high fuel pressure in a shared rail, enabling precise electronic control of injection timing and quantity, which enhances fuel efficiency and reduces emissions. Unit Injector systems integrate the injector and pump into a single unit per cylinder, providing high injection pressure but limited flexibility in injection timing and multiple injections per cycle. The key differences lie in fuel pressure management, injection control precision, and adaptability to emission standards, with Common Rail generally offering superior performance in modern diesel engines.
Fuel Injection Pressure and Control
Common Rail Injection systems operate at higher fuel injection pressures, typically up to 2,500 bar, providing precise control over injection timing and multiple injection events per cycle through electronic control units (ECUs). Unit Injector systems integrate the injector and pump, generating pressures around 1,800 bar, with mechanical or camshaft-driven control limiting flexibility in injection timing and quantity. The higher pressure and advanced electronic regulation in Common Rail systems result in improved fuel atomization, better combustion efficiency, and reduced emissions compared to Unit Injector technology.
Engine Performance and Efficiency
Common Rail Injection systems deliver precise fuel metering and higher injection pressure up to 2,500 bar, resulting in improved combustion efficiency and reduced emissions compared to Unit Injector systems. Unit Injector technology integrates the injector and pump, providing robust performance but generally lower injection pressure and less flexibility in injection timing modulation. Engines equipped with Common Rail Injection achieve better fuel atomization and multiple injection events per cycle, enhancing power output and fuel economy.
Emissions and Environmental Impact
Common Rail Injection systems offer precise fuel delivery at high pressure, resulting in more complete combustion and significantly lower NOx and particulate emissions compared to Unit Injectors. Unit Injectors, while robust, often produce higher levels of soot and unburned hydrocarbons due to less flexible injection timing and pressure control. Improved emission control in Common Rail technology contributes to reduced environmental pollution and better compliance with stringent emission standards.
Maintenance and Reliability
Common Rail Injection systems offer enhanced maintenance flexibility due to centralized high-pressure fuel delivery and fewer moving parts, resulting in longer service intervals and simplified diagnostics. Unit Injectors, integrated directly into each cylinder, can be more prone to wear from mechanical complexity, requiring more frequent maintenance and precision calibration to maintain reliability. The modular design of Common Rail systems improves overall engine uptime and reduces repair costs compared to the maintenance-intensive Unit Injector setups.
Cost Implications and Market Adoption
Common Rail Injection systems offer higher fuel efficiency and lower emissions but come with increased upfront costs due to advanced electronic control units and high-pressure components, making them more expensive than Unit Injector systems. Unit Injectors, favored for their mechanical simplicity and reliability, generally incur lower maintenance expenses and initial investment, contributing to sustained adoption in markets prioritizing cost-effectiveness and durability. Market adoption trends show Common Rail technology dominating in passenger vehicles and heavy-duty trucks globally, while Unit Injectors retain strong presence in agricultural and construction sectors where ruggedness and lower operating costs are critical.
Future Trends in Diesel Injection Technology
Future trends in diesel injection technology emphasize the refinement of Common Rail Injection systems due to their precise fuel delivery, higher pressure capabilities, and enhanced emission control compared to Unit Injectors. Advanced electronic control units (ECUs) and smart sensors enable Common Rail systems to optimize injection timing and pressure, supporting stricter emission standards and improved fuel efficiency. Unit Injector technology, while robust, faces limitations in adaptability and noise control, making Common Rail the preferred choice for next-generation diesel engines.
