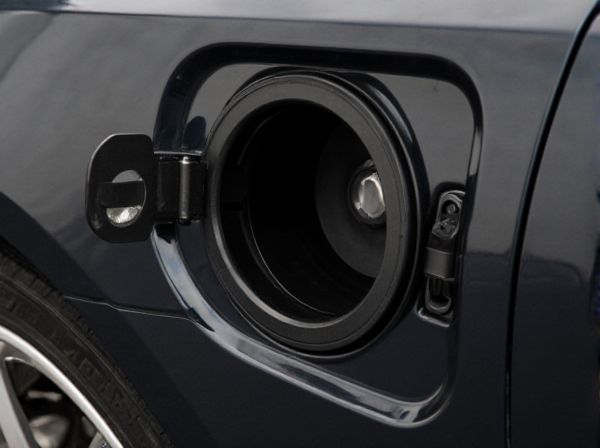

Photo illustration: Integrated Filler Neck Tank vs Remote Filler Tank
An integrated filler neck tank streamlines your vehicle's design by incorporating the fuel filler pipe directly into the tank, reducing installation complexity and potential leak points. Remote filler tanks position the filler neck away from the tank itself, offering greater flexibility in vehicle design and easier access for refueling or maintenance. Choosing between these options depends on your vehicle's space constraints, ease of access needs, and design preferences.
Table of Comparison
| Feature | Integrated Filler Neck Tank | Remote Filler Tank |
|---|---|---|
| Design | Filler neck attached directly to the tank body | Filler neck located remotely, connected by pipes |
| Installation | Simple, fewer components | Requires additional piping and mounting hardware |
| Space Efficiency | Compact, ideal for tight engine bays | Flexible placement, better for complex vehicle layouts |
| Maintenance | Easier access for filler neck repairs | Filler neck can be serviced without tank removal |
| Fuel Venting | Direct venting; simpler system | Requires additional vent pipes; better vapor management |
| Cost | Lower manufacturing and assembly costs | Higher cost due to complexity and parts |
| Applications | Standard passenger cars, small vehicles | Off-road vehicles, trucks, custom installations |
Introduction to Fuel Filler Tank Designs
Integrated filler neck tanks combine the fuel filler neck directly with the fuel tank, reducing the number of components and potential leak points in automotive fuel systems. Remote filler neck tanks separate the fuel inlet from the tank, allowing greater design flexibility and ease of maintenance, especially in larger or complex vehicle configurations. Choosing between integrated and remote filler neck designs depends on factors such as vehicle size, packaging constraints, and safety requirements.
What Is an Integrated Filler Neck Tank?
An Integrated Filler Neck Tank incorporates the filler neck directly into the fuel tank design, streamlining installation and reducing the risk of fuel leaks by minimizing connections. This design enhances fuel system efficiency and safety compared to Remote Filler Tanks, which use separate filler neck components connected by hoses or pipes. Integrated tanks are commonly used in modern automotive applications for their compactness and ease of manufacturing.
What Is a Remote Filler Tank?
A remote filler tank is a type of fuel storage system where the filler cap and opening are located separately from the main tank, allowing fuel to be added at a convenient or safer location. This design reduces the risk of spills and exposure to fumes by positioning the filler away from sensitive engine components or confined spaces. Compared to integrated filler neck tanks, remote filler tanks offer greater flexibility in installation and improved safety during refueling operations.
Key Differences Between Integrated and Remote Filler Tanks
Integrated filler neck tanks combine the filler neck and tank into a single unit, reducing space requirements and simplifying installation in confined areas like motorcycles or compact vehicles. Remote filler tanks separate the filler neck from the main tank via a hose, offering greater flexibility in placement and easier access for refueling in larger vehicles or armored applications. Integrated tanks typically provide better sealing against contaminants, while remote tanks allow for customized mounting locations to optimize vehicle design and security.
Installation and Space Considerations
Integrated filler neck tanks offer streamlined installation by combining the filler neck and tank into a single unit, reducing the need for extensive plumbing and minimizing potential leak points. Remote filler tanks provide greater flexibility in placement, allowing the filler neck to be positioned separately for easier access in tight engine compartments or constrained spaces. Space considerations favor integrated tanks in compact designs where simplicity and fewer components enhance reliability, while remote filler tanks accommodate more complex layouts requiring customized filler locations.
Maintenance and Accessibility
Integrated filler neck tanks offer streamlined maintenance due to their direct attachment, simplifying inspection and refueling tasks while minimizing contamination risks. Remote filler tanks enhance accessibility by allowing placement of the filler neck in convenient locations, reducing exposure to harsh environments but potentially complicating maintenance due to extended fuel lines. Choosing between these systems depends on balancing ease of access with maintenance efficiency and site-specific operational constraints.
Cost Analysis: Integrated vs Remote Filler Tanks
Integrated filler neck tanks typically reduce installation and maintenance costs by combining the filler neck and tank into a single unit, minimizing labor and material expenses. Remote filler tanks often incur higher costs due to additional piping, brackets, and sealing components required to connect the filler neck and tank separately. Cost analysis indicates that integrated systems offer economic advantages in terms of upfront investment and long-term operational savings compared to remote filler configurations.
Safety Implications of Each Design
Integrated filler neck tanks reduce risks of fuel spillage and vapor leaks by minimizing the number of connections and sealing points, enhancing overall safety during refueling operations. Remote filler tanks, while offering flexibility in vehicle design, increase potential hazards due to longer fuel lines and multiple connection points that may be prone to leaks or damage in collisions. Proper installation, maintenance, and the use of robust materials are critical in mitigating safety risks inherent to both configurations.
Application Suitability and Industry Usage
Integrated filler neck tanks offer compact design advantages suited for passenger vehicles and light-duty trucks where space optimization and simplified fuel system layouts are critical. Remote filler tanks excel in heavy-duty industries such as agriculture, construction, and commercial trucks, providing flexibility in tank placement and improved safety by isolating the fuel inlet from the tank. Choosing between these tanks depends on application-specific factors including vehicle size, fuel volume requirements, and maintenance accessibility.
Making the Right Choice: Factors to Consider
Choosing between an Integrated Filler Neck Tank and a Remote Filler Tank depends on space constraints, installation complexity, and maintenance accessibility. An Integrated Filler Neck Tank offers compact design benefits ideal for limited space but can complicate repairs, while Remote Filler Tanks provide easier servicing and flexible placement at the cost of requiring additional piping. Material compatibility, fuel type, and application environment should also guide the decision to ensure optimal performance and safety.
