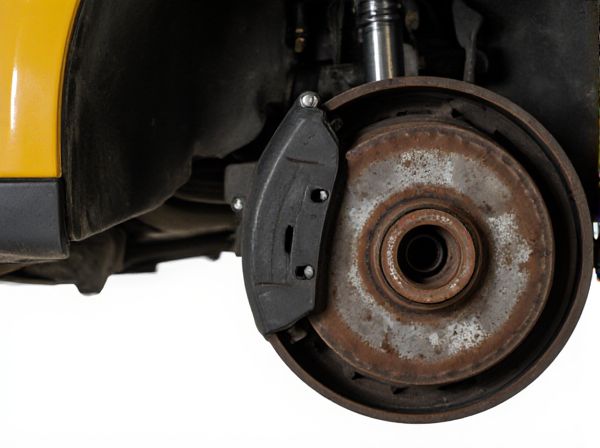

Photo illustration: Caster Angle vs Camber Angle Adjustment
Caster angle adjustment influences your vehicle's steering stability and cornering performance by tilting the steering axis forward or backward, while camber angle adjustment affects tire contact and wear by tilting the wheels inward or outward. Properly balancing these angles optimizes handling precision and extends tire life. Understanding how to adjust both angles ensures your vehicle maintains optimal grip and responsiveness on the road.
Table of Comparison
| Aspect | Caster Angle | Camber Angle |
|---|---|---|
| Definition | The angle of the steering axis tilted forward or backward in the vertical plane. | The tilt of the wheels inward or outward from the vertical axis. |
| Primary Function | Enhances directional stability and steering returnability. | Improves tire contact with the road for better grip and handling. |
| Adjustment Effect | Changes steering effort and straight-line tracking performance. | Alters tire wear pattern and cornering performance. |
| Typical Adjustment Range | +2deg to +8deg positive caster. | -1deg to +1deg camber (negative or positive). |
| Impact on Steering | Improves vehicle stability at high speed; increases steering effort. | Enhances cornering grip; may cause uneven tire wear if misadjusted. |
| Common Usage | Used mainly in front suspension to aid straight-line stability. | Used on front and rear wheels to optimize handling balance. |
| Adjustment Tools | Camber/caster gauge or alignment machine. | Camber gauge or alignment machine. |
Introduction to Caster and Camber Angles
Caster angle refers to the tilt of the steering axis viewed from the side of the vehicle, influencing straight-line stability and steering feel. Camber angle is the inward or outward tilt of the wheels when viewed from the front or rear, affecting tire wear and cornering grip. Proper adjustment of both caster and camber angles is crucial for optimized vehicle handling, safety, and tire performance.
Understanding Wheel Alignment Basics
Caster angle influences steering stability and cornering by tilting the steering axis forward or backward, while camber angle adjusts the vertical tilt of the wheels affecting tire contact and wear. Proper caster alignment improves straight-line tracking and steering feel, whereas correct camber alignment maximizes tire grip and minimizes uneven tread wear. Balanced adjustment of both angles is essential for optimal vehicle handling, safety, and tire longevity.
What is Caster Angle?
Caster angle is the angle between the steering axis and the vertical axis when viewed from the side of the vehicle, measured in degrees. It influences the vehicle's straight-line stability and steering feel, with positive caster improving directional control and self-centering of the steering wheel. Proper caster angle adjustment enhances handling performance, especially at higher speeds, by promoting better tire contact and road feedback.
What is Camber Angle?
Camber angle refers to the tilt of a vehicle's wheels when viewed from the front or rear, measured in degrees. A positive camber means the top of the wheels lean outward, while a negative camber indicates they tilt inward, impacting tire grip and handling performance. Proper camber angle adjustment enhances cornering stability and reduces uneven tire wear, crucial for optimal vehicle dynamics.
Key Differences: Caster vs Camber Angles
Caster angle adjustment affects the steering stability and self-centering of a vehicle, measured by the angle of the steering axis relative to vertical when viewed from the side. Camber angle adjustment influences tire contact with the road, determined by the tilt of the wheels inward or outward from the vertical when viewed from the front or rear. Key differences include caster's role in directional control and camber's impact on tire wear and grip, making precise adjustments critical for optimal handling and tire performance.
Impact of Caster Adjustment on Vehicle Handling
Adjusting the caster angle significantly influences a vehicle's straight-line stability and steering responsiveness by controlling the self-aligning torque on the front wheels. Increasing positive caster improves directional control and cornering precision by enhancing tire-road contact during turns, which reduces steering effort and increases high-speed stability. Precise caster adjustments complement camber settings by maintaining optimal tire alignment and ensuring balanced handling performance under varied driving conditions.
Influence of Camber Adjustment on Tire Wear
Adjusting camber angle directly affects tire wear by altering the contact patch between the tire and the road surface; excessive negative camber increases wear on the inner edge of the tire, while positive camber causes outer edge wear. Proper camber settings enhance tire grip and handling characteristics, but improper adjustments lead to uneven wear patterns and reduced tire lifespan. Manufacturers recommend camber adjustments based on specific vehicle suspension geometry to optimize tire performance and uniform wear.
Signs of Misaligned Caster and Camber Angles
Misaligned caster angles often cause the vehicle to pull to one side, resulting in uneven steering effort and poor directional stability. Incorrect camber angles lead to uneven tire wear, especially on the inner or outer edges, and compromised cornering performance. Both misalignments can cause vibrations, increased tire wear, and reduced handling safety, indicating the need for precise wheel alignment adjustments.
How to Adjust Caster and Camber Angles Properly
Proper adjustment of caster and camber angles requires precise measurement using alignment tools such as a computerized wheel alignment machine or a camber gauge. To adjust caster angle, manipulate the upper or lower control arms or strut mounts according to manufacturer specifications, ensuring the steering axis tilt is optimized for vehicle stability and steering responsiveness. For camber angle adjustment, change the position of the strut bolts, control arm bushings, or cam bolts to achieve the ideal tire-to-road contact, reducing uneven tire wear and improving handling performance.
Caster and Camber Adjustment: Best Practices and Tips
Proper caster angle adjustment enhances vehicle stability and steering precision, typically requiring alignment tools to maintain optimal positive caster for improved handling. Camber angle adjustment affects tire contact with the road, where slight negative camber improves cornering grip but excessive adjustment causes uneven tire wear, so measurements must be precise. Best practices include using a calibrated alignment system, performing adjustments on level surfaces, and verifying settings through test drives to ensure balanced performance and tire longevity.
