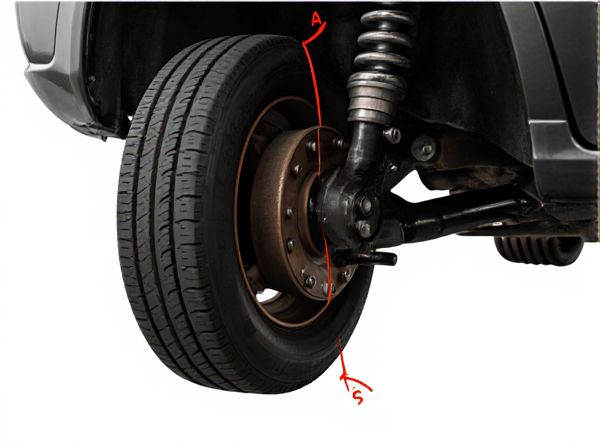

Photo illustration: Caster Angle vs Camber Angle
Caster angle influences your vehicle's steering stability and cornering by controlling the tilt of the steering axis, while camber angle affects tire grip and wear by adjusting the vertical tilt of the tires. Proper alignment of caster angle enhances straight-line tracking and steering feel, whereas correct camber angle improves tire contact patch during turns, maximizing traction. Balancing both angles ensures optimal handling and tire longevity for safer, smoother driving.
Table of Comparison
| Aspect | Caster Angle | Camber Angle |
|---|---|---|
| Definition | The forward or backward tilt of the steering axis viewed from the side of the vehicle. | The inward or outward tilt of the wheels viewed from the front or rear of the vehicle. |
| Function | Enhances steering stability, straight-line tracking, and self-centering of the steering wheel. | Improves tire contact with the road during cornering, affecting grip and tire wear. |
| Typical Range | 3deg to 7deg positive caster for most passenger cars. | -1deg to +1deg for everyday vehicles; varies based on performance and handling needs. |
| Impact on Handling | Increases directional stability and steering feedback. | Affects cornering performance and tire life. |
| Adjustment | Set during wheel alignment, often fixed on OEM vehicles. | Regularly adjustable to optimize handling and tire wear. |
| Measurement | Measured in degrees from the vertical axis of the steering pivot. | Measured in degrees relative to vertical wheel alignment. |
Introduction to Wheel Alignment Angles
Caster angle refers to the forward or backward tilt of the steering axis when viewed from the side, influencing vehicle stability and steering effort. Camber angle measures the inward or outward tilt of the wheel relative to the vertical axis, affecting tire contact and wear. Precise adjustment of both caster and camber angles is essential for optimal wheel alignment, ensuring improved handling, tire longevity, and overall driving safety.
Definition of Caster Angle
Caster angle is the angle formed between the steering axis and the vertical axis when viewed from the side of the vehicle, crucial for stability and steering feel. Unlike camber angle, which measures the tilt of the wheel relative to the vertical axis from a front view, caster angle directly influences directional control and self-centering of the steering wheel. Proper caster angle adjustments help improve vehicle handling, enhance straight-line tracking, and reduce steering effort.
Definition of Camber Angle
Camber angle refers to the tilt of a vehicle's wheels inward or outward relative to the vertical axis when viewed from the front or rear, affecting tire contact with the road and handling. It is measured in degrees and can be positive (wheels tilt outward) or negative (wheels tilt inward), influencing cornering stability and tire wear. Understanding camber angle is crucial for optimizing traction, improving steering response, and enhancing overall vehicle performance.
Key Differences Between Caster and Camber
Caster angle is the tilt of the steering axis viewed from the side of the vehicle, affecting directional stability and steering effort, while camber angle is the tilt of the wheels from vertical when viewed from the front or rear, influencing tire contact and cornering performance. Caster angle primarily impacts the vehicle's self-centering ability and straight-line stability, whereas camber angle controls tire wear and grip during turns. Precise adjustment of caster and camber angles is essential for optimal handling, tire longevity, and overall suspension alignment performance.
Effects of Caster Angle on Vehicle Handling
Caster angle significantly influences vehicle handling by enhancing straight-line stability and steering feel, especially at higher speeds. Positive caster angles increase the self-aligning torque, which helps the wheels return to the center after a turn, improving directional control and reducing driver fatigue. Excessive positive caster may increase steering effort but generally improves cornering stability and road feedback.
Effects of Camber Angle on Tire Wear
Camber angle directly influences tire wear by altering the contact patch between the tire and the road surface. Negative camber increases grip during cornering but causes excessive wear on the inner edges of the tires, while positive camber can lead to wear on the outer edges. Proper camber adjustment is essential for balanced tire wear, optimal handling, and prolonged tire life.
Role of Caster and Camber in Vehicle Stability
Caster angle influences vehicle stability by controlling steering wheel returnability and straight-line tracking, enhancing directional stability at higher speeds. Camber angle impacts tire-road contact, improving cornering grip and overall handling by managing lateral tire load distribution. Optimizing both angles ensures balanced stability, with caster promoting precise steering control and camber maximizing traction during turns.
Common Signs of Poor Caster or Camber Alignment
Uneven or rapid tire wear often indicates poor caster or camber alignment, with camber issues causing inner or outer tire edge wear while caster misalignment results in vehicle instability. Steering wheel pulling to one side during driving at moderate speeds signals a misaligned caster or camber angle. Vehicle wandering, poor cornering response, and steering wheel off-center when driving straight are common symptoms linked to suboptimal caster and camber angles affecting overall handling and safety.
Adjusting Caster and Camber: Best Practices
Adjusting caster and camber angles requires precise alignment tools to ensure optimal vehicle handling and tire wear. Use a quality alignment rack to measure angles accurately and adjust the caster by altering the upper control arm position or strut mount, while camber is typically adjusted via eccentric bolts or camber plates. Consistent road testing and fine-tuning help achieve the best balance between steering stability and tire contact patch.
Choosing the Right Alignment for Your Driving Needs
Caster angle influences the steering stability and cornering performance by tilting the steering axis forward or backward, essential for maintaining straight-line driving and responsive handling. Camber angle adjusts the tilt of the wheels relative to the road surface, optimizing tire contact for improved grip and even tire wear during cornering or varying road conditions. Selecting the right combination of caster and camber angles depends on driving priorities such as daily comfort, high-performance cornering, or off-road stability, ensuring precise alignment tailored to specific vehicle dynamics and road environments.
