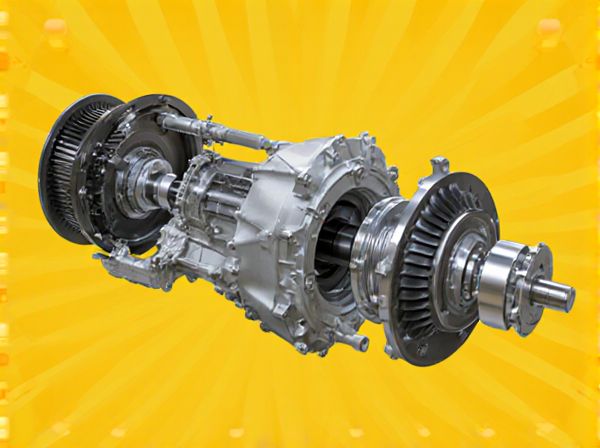

Photo illustration: CVT pulley-based vs Toroidal-based
CVT pulley-based systems utilize a pair of variable-diameter pulleys connected by a belt, providing smooth and efficient transmission ratio changes ideal for varying speeds. Toroidal-based CVTs employ discs and rollers that transmit power through friction, offering higher torque capacity and enhanced control over gear ratios. Choosing between them depends on Your vehicle's performance requirements and desired driving experience, as pulley-based CVTs excel in fuel efficiency while toroidal systems deliver greater power handling.
Table of Comparison
| Feature | CVT Pulley-Based Transmission | Toroidal-Based Transmission |
|---|---|---|
| Mechanism | Uses variable-diameter pulleys connected by a belt or chain. | Uses rotating discs and power rollers to transmit torque. |
| Efficiency | Moderate efficiency; some power loss due to belt slippage. | Higher mechanical efficiency; reduced slippage. |
| Torque Capacity | Limited torque capacity; suitable for smaller engines. | Handles higher torque; ideal for performance applications. |
| Durability | Can wear out belts; moderate maintenance required. | Robust design; longer lifespan with less maintenance. |
| Smoothness | Provides seamless acceleration without gear shifts. | Also smooth but may exhibit slight feedback during torque transfer. |
| Cost | Generally lower cost; easier to produce. | Higher manufacturing cost due to complex components. |
| Applications | Common in economy cars and hybrids. | Used in high-performance and luxury vehicles. |
Introduction to Continuously Variable Transmissions (CVT)
Continuously Variable Transmissions (CVT) provide seamless acceleration by offering an infinite range of gear ratios between minimum and maximum values, enhancing fuel efficiency and driving comfort. CVT pulley-based systems utilize adjustable belts and variable-diameter pulleys to smoothly change gear ratios, while Toroidal-based CVTs employ friction rollers in a toroidal cavity to transmit torque with high efficiency and torque capacity. Both designs optimize engine performance but differ in mechanical complexity, durability, and application suitability within the automotive industry.
Overview of CVT Pulley-Based Systems
CVT pulley-based systems utilize a pair of variable-diameter pulleys connected by a steel or reinforced belt, enabling continuous adjustment of gear ratios for smooth acceleration and improved fuel efficiency. These systems offer a simpler mechanical design and lower manufacturing cost compared to toroidal-based CVTs, which use rotating discs and power rollers for torque transfer. Pulley-based CVTs are widely adopted in passenger vehicles due to their reliability and seamless performance in varying driving conditions.
Fundamentals of Toroidal CVT Technology
Toroidal CVT technology utilizes rotating discs and power rollers to transfer torque through friction, enabling continuous and smooth gear ratio changes without steps. Unlike CVT pulley-based systems that rely on variable-diameter pulleys and belts, toroidal CVTs offer enhanced torque capacity and durability by directly transmitting power via the toroidal contact zones. The fundamental advantage of toroidal CVTs lies in precise traction control and high efficiency across a wide ratio range, making them suitable for high-performance automotive applications.
Key Differences: Pulley-Based vs Toroidal-Based CVTs
Pulley-based CVTs utilize a pair of variable-diameter pulleys connected by a steel or rubber belt to provide seamless gear ratio changes, optimizing fuel efficiency and smooth acceleration. Toroidal-based CVTs employ rotating discs and power rollers to transmit torque, offering higher torque capacity and enhanced durability under heavy loads. The primary distinctions lie in mechanical complexity, efficiency at varying loads, and suitability for different engine power ranges.
Efficiency Comparison: Performance and Fuel Economy
CVT pulley-based transmissions typically offer higher mechanical efficiency due to fewer frictional losses and simpler design, resulting in better fuel economy under normal driving conditions. Toroidal-based CVTs, while providing smoother torque transfer and more precise ratio control, often experience increased internal friction, which can marginally reduce overall efficiency. In terms of performance, pulley-based CVTs excel in fuel efficiency during steady cruising, whereas toroidal CVTs deliver improved acceleration responsiveness but may sacrifice some fuel economy.
Mechanical Complexity and Durability
CVT pulley-based systems feature simpler mechanical designs with fewer moving parts, leading to easier maintenance and generally higher durability under moderate stress conditions. Toroidal-based CVTs employ complex rollers and discs that allow for smooth torque transmission but involve intricate mechanisms that can be more prone to wear and require precise manufacturing. Durability in toroidal CVTs is often challenged by higher mechanical complexity, which can result in increased risk of component fatigue compared to the more straightforward pulley-based CVTs.
Applications in Modern Automotive Industry
CVT pulley-based systems dominate in fuel-efficient passenger vehicles due to their smooth torque transmission and compact design, enhancing urban and hybrid car drivetrains. Toroidal-based CVTs offer higher torque capacity and greater durability, making them suitable for performance-oriented and heavy-duty automotive applications. The choice between these CVT types depends on balancing efficiency, power output, and vehicle application requirements in modern automotive engineering.
Maintenance Requirements and Longevity
CVT pulley-based transmissions generally require more frequent maintenance due to belt wear and the need for regular belt tension adjustments, impacting overall longevity. Toroidal-based CVTs feature robust traction rollers and discs, resulting in reduced maintenance demands and improved durability under high torque conditions. The enhanced design of toroidal systems often leads to a longer operational lifespan compared to traditional pulley-based CVTs.
Cost Analysis: Production and Ownership
CVT pulley-based systems generally offer lower production costs due to simpler design and fewer precision components compared to toroidal-based CVTs, which require more complex manufacturing processes and specialized materials. Ownership costs for pulley-based CVTs are typically reduced by easier maintenance and widely available parts, whereas toroidal-based transmissions may incur higher repair expenses stemming from intricate parts and limited service options. Overall, pulley-based CVTs present a more cost-effective solution for mass-market vehicles, while toroidal-based CVTs are often reserved for performance or niche applications with higher initial and upkeep investments.
Future Trends and Innovations in CVT Technologies
CVT pulley-based systems continue evolving with enhanced belt materials and adaptive control algorithms to improve efficiency and durability in hybrid and electric vehicles. Toroidal-based CVTs are leveraging advanced traction fluids and precision-machined rollers to achieve higher torque capacities and smoother power delivery, targeting heavy-duty and performance applications. Future innovations emphasize integrating AI-driven diagnostics and real-time optimization to maximize fuel economy and reduce emissions across diverse automotive platforms.
