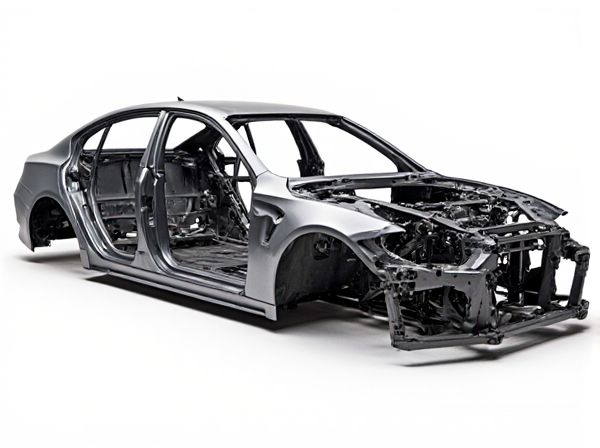

Photo illustration: Monocoque Frame vs Semi-Monocoque Frame
A monocoque frame relies on the outer shell to bear most of the structural load, offering high strength-to-weight ratio and streamlined design ideal for lightweight applications. Semi-monocoque frames combine a partial load-bearing skin with internal supports or reinforcements, enhancing durability and damage tolerance without significantly increasing weight. Your choice depends on the balance between structural efficiency and maintenance complexity suitable for your project's requirements.
Table of Comparison
| Feature | Monocoque Frame | Semi-Monocoque Frame |
|---|---|---|
| Definition | Single shell structure where the body supports all loads | Combination of load-bearing skin and internal reinforcement |
| Load Distribution | Uniform load distribution across the shell | Load shared between skin and internal frames |
| Weight | Lighter due to absence of heavy frame | Slightly heavier from added reinforcements |
| Strength | Good strength, maximizes rigidity | Higher structural integrity due to reinforcements |
| Manufacturing Complexity | Requires advanced fabrication techniques | Moderate complexity with easier repairs |
| Common Usage | Modern passenger cars, lightweight vehicles | Aircraft structures, some heavy-duty vehicles |
| Repairability | Challenging due to integral structure | More repair-friendly with replaceable parts |
Introduction to Frame Structures
Monocoque frames rely on the external skin to bear structural loads, providing lightweight strength and rigidity by distributing stress across the entire surface. Semi-monocoque frames combine a load-bearing skin with an internal framework of stringers and bulkheads, enhancing durability and resistance to localized stresses. These structural differences impact the performance, weight, and maintenance of vehicles and aircraft using these frame types.
Definition of Monocoque Frame
A monocoque frame is a structural design where the external skin supports most of the load, eliminating the need for an internal frame, commonly used in automotive and aerospace engineering for its lightweight and high strength properties. This construction method contrasts with the semi-monocoque frame, which combines a load-bearing skin with an internal support framework, distributing stress more evenly across the structure. Monocoque frames optimize material efficiency and rigidity by integrating the chassis and body into a single cohesive unit.
Definition of Semi-Monocoque Frame
The semi-monocoque frame is an aircraft structural design that combines a load-bearing skin with an internal framework of stringers and bulkheads, enhancing strength and rigidity while reducing weight. Unlike a pure monocoque frame, which relies solely on the external skin to bear stresses, the semi-monocoque distributes loads between the skin and its internal support structure, improving damage tolerance and repairability. This design is widely used in modern aircraft fuselages for its optimal balance of durability, weight-efficiency, and aerodynamic smoothness.
Construction Techniques and Materials
Monocoque frames rely on a single-shell construction technique where the external skin bears most of the structural load, typically using lightweight materials such as aluminum alloys or carbon fiber composites. Semi-monocoque frames combine a load-bearing skin with an internal framework of bulkheads, ribs, and longerons, enhancing structural rigidity and damage tolerance, commonly employing aluminum or advanced composite materials. The choice between these construction techniques influences weight distribution, strength, and maintenance complexity in aerospace and automotive applications.
Weight and Structural Efficiency Comparison
Monocoque frames offer superior weight reduction by integrating the vehicle's skin and structure into a single load-bearing shell, eliminating the need for a separate frame and thus maximizing structural efficiency. Semi-monocoque frames combine a load-bearing skin with internal reinforcements like stringers and frames, balancing weight savings and increased rigidity for enhanced crash resistance. Compared to semi-monocoque designs, monocoque frames typically achieve higher strength-to-weight ratios, making them ideal for applications where minimizing weight without sacrificing structural integrity is critical.
Load Distribution Mechanisms
Monocoque frames distribute load uniformly across the outer skin, relying on the structural integrity of a stressed shell to resist bending, torsion, and shear forces, making them lightweight yet strong. Semi-monocoque frames combine a stressed skin with internal reinforcements such as frames, stringers, or bulkheads, which share the load and improve resistance to localized stresses and damage. The internal supports in semi-monocoque designs enhance durability and allow for easier repairs, while monocoque designs excel in maximizing strength-to-weight ratio through continuous load distribution.
Common Applications in Industries
Monocoque frames, characterized by their single-shell construction, are predominantly used in aerospace for lightweight aircraft fuselages and in automotive racing where structural rigidity and weight reduction are critical. Semi-monocoque frames combine a load-bearing skin with internal support structures, making them common in commercial aircraft, trucks, and heavy machinery for enhanced durability and damage tolerance. The choice between the two depends largely on the balance needed between strength, weight, and repairability in specific industrial applications.
Advantages of the Monocoque Frame
The monocoque frame offers superior structural integrity by integrating the body and chassis into a single, unified shell, resulting in enhanced strength-to-weight ratios and improved crash safety. This design reduces overall weight, leading to better fuel efficiency and handling performance in vehicles. Manufacturing efficiency is also increased due to fewer components and simplified assembly processes compared to semi-monocoque frames.
Advantages of the Semi-Monocoque Frame
The semi-monocoque frame offers enhanced structural strength and durability by combining a load-bearing skin with an internal support framework, reducing stress concentration compared to a pure monocoque design. It allows for easier repairs and modifications due to its modular construction, improving maintenance efficiency and operational longevity. This frame type provides better resistance to fatigue and impact, making it ideal for aircraft and automotive applications requiring robust performance and safety.
Choosing the Right Frame for Specific Needs
Monocoque frames offer superior strength-to-weight ratios by integrating the skin and structure into a single load-bearing element, ideal for lightweight sports cars and aircraft demanding rigidity and aerodynamic efficiency. Semi-monocoque frames combine a load-bearing skin with underlying reinforcement like stringers and frames, providing enhanced damage tolerance and repairability, making them suitable for applications requiring durability and maintenance flexibility such as commercial airplanes. Selecting between monocoque and semi-monocoque frames depends on specific needs: prioritize monocoque for maximum performance and weight savings, or choose semi-monocoque when structural resilience and ease of repair are critical.
