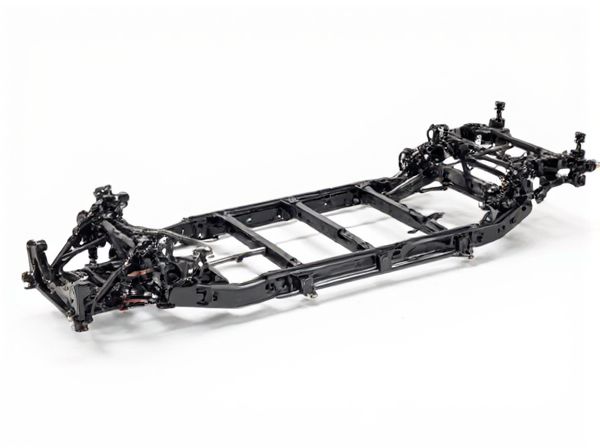

Photo illustration: Cradle Frame vs Subframe
A cradle frame offers enhanced rigidity and stability by supporting the engine and chassis around the entire perimeter, making it ideal for off-road or heavy-duty use. A subframe is a detachable structural component that supports specific parts like the engine or suspension, improving repair accessibility and reducing overall vehicle weight. Choosing between the two depends on your desired balance between strength, maintenance ease, and vehicle performance.
Table of Comparison
| Feature | Cradle Frame | Subframe |
|---|---|---|
| Definition | Structural frame supporting engine and transmission as a single unit | Detachable frame section mounting engine and suspension components |
| Material | Typically steel or aluminum alloy | Steel or aluminum, often lighter construction |
| Weight | Heavier, provides robust support | Lighter, aids vehicle weight reduction |
| Vibration & Noise | Less isolated, transmits more engine vibration | Better vibration dampening, improves NVH (Noise, Vibration, Harshness) |
| Repair & Replacement | Complex, entire frame often requires attention | Easier, subframe can be unbolted and replaced |
| Usage | Common in heavy-duty and performance cars | Widespread in passenger cars for modular design |
| Structural Integrity | Higher rigidity, better for handling loads | Moderate rigidity, balances flexibility and strength |
Introduction to Cradle Frame and Subframe
A cradle frame is a vehicle chassis design where the engine and transmission are supported by a single, rigid frame, enhancing structural rigidity and weight distribution. In contrast, a subframe is a separate, smaller frame attached to the main vehicle structure, isolating components like the engine or suspension to reduce vibrations and improve ride quality. Understanding the differences between cradle frames and subframes is crucial for automotive engineers aiming to optimize vehicle performance and safety.
Definition and Structure of Cradle Frame
A cradle frame is a vehicle chassis design where the engine and transmission are supported by a rigid frame structure that "cradles" these components, enhancing stability and load distribution. Unlike subframes, which are separate structural units bolted to the main frame, a cradle frame is typically integrated into the body, offering greater strength and rigidity. The structure of a cradle frame usually consists of tubular or box-section steel elements shaped to envelop and support the powertrain, improving impact resistance and chassis dynamics.
Definition and Structure of Subframe
A subframe is a separate, smaller structural component attached to the vehicle's main frame or chassis, designed to support key components such as the engine, transmission, or suspension, while isolating vibrations and improving rigidity. Unlike a cradle frame, which is an integral part of the main chassis and often forms a large, single-piece loop around the engine, a subframe is modular and bolted on, allowing easier repairs and replacement. Subframes typically consist of stamped steel or aluminum sections engineered for strength and weight reduction, enhancing vehicle safety and handling dynamics.
Key Differences Between Cradle Frame and Subframe
Cradle frames provide structural support by surrounding the engine and transmission, offering enhanced rigidity and load distribution, while subframes are separate components attached to the main frame to isolate vibrations and facilitate modular assembly. Cradle frames are integral to vehicle chassis design, ensuring better crash protection and handling, whereas subframes primarily support specific parts like the suspension and drivetrain. The key difference lies in their role: cradle frames serve as primary supports for critical components, whereas subframes act as modular units improving repairability and reducing noise, vibration, and harshness (NVH).
Advantages of Cradle Frame Design
Cradle frame design offers superior structural rigidity by providing a continuous support system that distributes weight evenly across the chassis. It enhances crash protection through its reinforced steel construction, which absorbs impact forces more effectively than subframe setups. This design also simplifies maintenance and improves handling stability by reducing flex and twist during dynamic driving conditions.
Advantages of Subframe Design
Subframe designs offer enhanced modularity and easier repairability compared to cradle frames, as they allow separate assembly and replacement of key components like suspension and engine mounts. They provide improved noise, vibration, and harshness (NVH) isolation by decoupling the subframe from the main chassis, resulting in a smoother and quieter ride. The subframe's flexible design facilitates weight distribution optimization and better crash energy absorption, contributing to overall vehicle safety and performance.
Applications in Automotive and Motorcycle Engineering
Cradle frames provide enhanced rigidity and better load distribution, making them ideal for high-performance motorcycles and off-road bikes that require superior handling and durability. Subframes, often used in automotive chassis and motorcycles, support secondary components like seats and fuel tanks while enabling modular design and easier repairs. Automotive applications favor subframes for isolating vibrations and improving crash safety, whereas motorcycles benefit from cradle frames' structural integrity and simplified manufacturing.
Durability and Maintenance Comparison
Cradle frames typically offer superior durability due to their robust construction, providing enhanced stability and impact resistance ideal for heavy-duty applications, while subframes are lighter and easier to repair, simplifying maintenance tasks and reducing downtime. The closed design of cradle frames minimizes stress points, resulting in longer lifespan under harsh conditions, whereas subframes allow for faster part replacements and better accessibility for routine servicing. Choosing between them depends on the balance between long-term durability priorities and the ease of ongoing maintenance requirements.
Cost and Manufacturing Considerations
Cradle frames generally incur higher manufacturing costs due to their complex cast or welded structures requiring precision tooling and heavy materials, increasing production time and expenses. Subframes offer cost advantages through modular design, enabling easier assembly, reduced material usage, and flexibility in manufacturing processes, which lowers labor and retooling costs. Automotive manufacturers often prefer subframes when budget constraints prioritize cost-efficiency and simplified repair or replacement workflows.
Choosing the Right Frame: Cradle Frame vs Subframe
Choosing the right frame between a cradle frame and a subframe depends on your motorcycle's intended use and performance needs. Cradle frames offer enhanced rigidity and durability, ideal for off-road or heavy-duty riding, while subframes provide a lighter, more flexible structure favored in sport and street bikes for improved handling and agility. Evaluating factors such as weight, strength, and maintenance can help determine the optimal frame for your bike's performance and ride quality.
