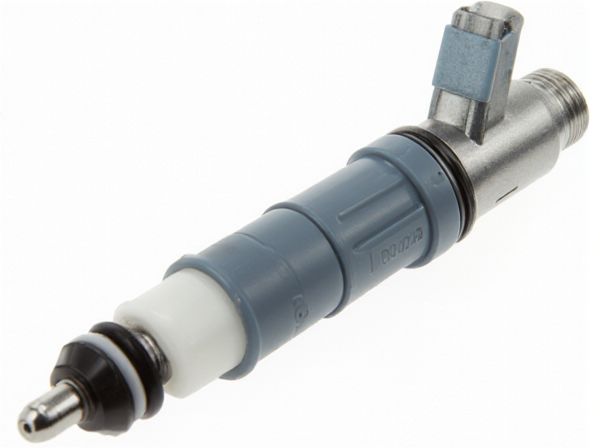

Photo illustration: Return System Injector vs Returnless System Injector
Return System Injectors maintain a continuous fuel flow by sending excess fuel back to the tank, ensuring consistent pressure and cooling of the injectors. Returnless System Injectors regulate fuel pressure at the tank, eliminating the return line and reducing heat in the fuel lines for better efficiency. Your choice between these systems can impact fuel economy, emissions, and engine responsiveness depending on vehicle design.
Table of Comparison
| Feature | Return System Injector | Returnless System Injector |
|---|---|---|
| Fuel Delivery | Constant high-pressure fuel sent to injectors with return flow to tank | Fuel pressure regulated at the tank, no fuel return line |
| Fuel Pressure Regulation | Pressure regulated by fuel pressure regulator near injectors | Pressure controlled by fuel pump module at the tank |
| Complexity | More complex with return lines and additional components | Simpler design, fewer hoses and fittings |
| Fuel Efficiency | Lower efficiency due to fuel cycling and heat soak | Higher efficiency as fuel temperature remains cooler |
| Emissions Control | Less precise fuel metering affects emissions | Improves emissions via precise pressure control |
| Maintenance | Higher maintenance due to return lines and regulator wear | Lower maintenance with fewer components |
Introduction to Fuel Injection Systems
Fuel injection systems are critical in managing fuel delivery to internal combustion engines, enhancing efficiency and performance. Return system injectors utilize a fuel return line to regulate pressure by cycling excess fuel back to the tank, maintaining constant pressure at the injectors. Returnless system injectors eliminate the return line by controlling fuel pressure directly at the tank or via a regulator near the pump, improving fuel economy and reducing evaporative emissions.
Overview of Return System Injectors
Return system injectors operate with a fuel return line that continuously circulates excess fuel back to the tank, maintaining consistent pressure and temperature in the fuel rail. This system features a mechanical fuel pressure regulator that adjusts pressure by allowing unused fuel to return, enhancing fuel injector reliability and consistent atomization. Common in older vehicles, return system injectors provide precise fuel control but are less efficient compared to returnless systems due to constant fuel recirculation.
Overview of Returnless System Injectors
Returnless system injectors regulate fuel delivery without relying on a fuel return line, enhancing fuel efficiency and reducing emissions by maintaining optimal fuel pressure directly at the injector. This system uses a fuel pump with integrated pressure control, providing accurate and consistent fuel metering to meet engine demands. Returnless injectors simplify the fuel system design and improve responsiveness compared to traditional return system injectors.
Key Differences Between Return and Returnless Injectors
Return System Injectors use a continuous fuel flow with excess fuel returning to the tank, allowing precise fuel pressure regulation and cooling. Returnless System Injectors regulate fuel pressure at the pump, eliminating the return line to reduce complexity and improve fuel efficiency. Key differences include the presence of a fuel return line in return systems and on-demand fuel delivery in returnless systems, impacting system design and fuel management.
Fuel Pressure Regulation: Return vs Returnless
Return system injectors use a fuel pressure regulator located on the fuel rail that maintains constant pressure by returning excess fuel to the tank, ensuring stable fuel delivery under varying engine loads. Returnless system injectors rely on a fuel pressure regulator inside the fuel pump module, controlling pressure at the tank and eliminating the need for a return line, which enhances efficiency and reduces heat buildup in the fuel. The return system provides precise pressure control through mechanical regulation, while the returnless system achieves pressure stability via electronic control, optimizing fuel efficiency and emissions.
Performance Impact: Response and Efficiency
Return System Injectors provide consistent fuel pressure by cycling excess fuel back to the tank, resulting in reliable response times but slightly reduced fuel efficiency due to continuous fuel recirculation. Returnless System Injectors regulate fuel pressure at the tank, improving fuel efficiency by minimizing fuel temperature and vapor lock, which enhances throttle response and overall engine performance. The improved fuel management in Returnless Systems translates to quicker fuel delivery adjustments and better emission control, positively impacting both response and efficiency.
Common Applications for Each Injector System
Return system injectors are commonly used in older diesel and gasoline engines with mechanical fuel pumps, where maintaining constant fuel pressure and cooling of the injectors through fuel recirculation is essential. Returnless system injectors are prevalent in modern vehicles with electronic fuel injection, optimizing fuel efficiency and reducing emissions by delivering precise fuel amounts directly to the combustion chamber without recirculating excess fuel. Common applications for returnless systems include light-duty passenger cars and trucks, while return systems are often found in heavy-duty vehicles and performance engines requiring robust fuel management.
Maintenance and Troubleshooting Considerations
Return System Injectors tend to require more frequent maintenance due to fuel pressure regulation through a mechanical return line, which can lead to issues like fuel leaks and inconsistent pressure. Returnless System Injectors simplify troubleshooting as they use electronic control for fuel pressure, reducing fuel temperature and vapor lock problems, thereby decreasing the likelihood of injector clogging. Diagnosing returnless systems often involves scanning ECU fault codes and checking sensor feedback, whereas return systems may demand inspection of fuel lines and mechanical regulators.
Pros and Cons of Return System Injectors
Return system injectors feature a fuel line that returns excess fuel to the tank, ensuring consistent pressure and cooling, which enhances injector longevity and performance accuracy. However, this design results in higher fuel consumption and increased evaporative emissions, making it less fuel-efficient and environmentally friendly compared to returnless systems. Maintenance can be more complex due to the additional fuel lines and components involved in managing the return flow.
Pros and Cons of Returnless System Injectors
Returnless system injectors offer improved fuel efficiency and reduced evaporative emissions by eliminating the fuel return line, which minimizes fuel heating and vapor lock issues. These injectors simplify the fuel system design, leading to lower manufacturing costs and reduced maintenance requirements, but can face challenges in maintaining consistent fuel pressure during varying engine demands. However, returnless injectors may have limitations in precise fuel delivery under high-performance conditions, compared to traditional return system injectors.
