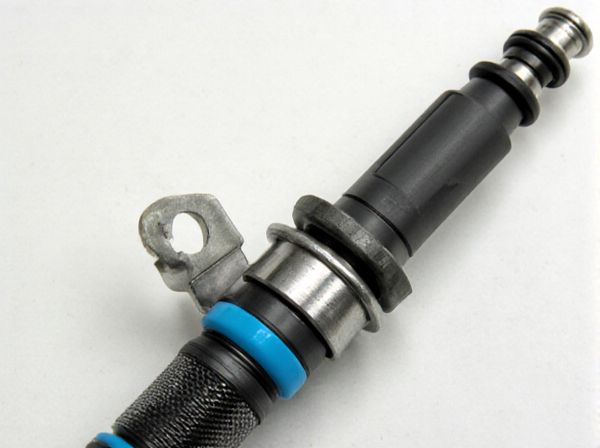

Photo illustration: Returnless Fuel System Injector vs Return Fuel System Injector
Returnless fuel system injectors regulate fuel pressure at the tank, eliminating the need for excess fuel return lines and improving fuel efficiency. Return fuel system injectors rely on a fuel pressure regulator near the engine, sending unused fuel back to the tank, which can increase fuel temperature and reduce efficiency. Your choice impacts fuel system complexity, engine performance, and maintenance requirements.
Table of Comparison
| Feature | Returnless Fuel System Injector | Return Fuel System Injector |
|---|---|---|
| Fuel Delivery | Regulates fuel pressure at the tank, no return line | Maintains fuel pressure with a return line to the tank |
| Fuel Pressure Control | Fuel pump controls pressure directly, simpler system | Fuel pressure regulator returns excess fuel, complex system |
| Fuel Efficiency | Improved due to reduced fuel heat and less vapor formation | Lower efficiency as fuel circulates back and heats up |
| Emission Control | Better control with less vapor emissions | Higher vapor emissions due to fuel circulation |
| System Complexity | Simpler, fewer components and hoses | More complex, additional return lines and parts |
| Common Applications | Modern vehicles, fuel-injection systems prioritizing efficiency | Older vehicles, traditional fuel systems |
Introduction to Fuel System Injectors
Fuel system injectors are crucial components that deliver precise amounts of fuel into the engine combustion chamber to optimize performance and efficiency. Returnless fuel system injectors regulate fuel flow by maintaining a consistent pressure directly at the injector, minimizing fuel return to the tank, which enhances fuel economy and reduces emissions. In contrast, return fuel system injectors circulate excess fuel back to the tank through a return line, ensuring consistent pressure but potentially causing increased fuel temperature and reduced efficiency.
Overview of Returnless Fuel Systems
Returnless fuel systems utilize a fuel pressure regulator located inside the fuel tank, which eliminates the need for a return line by maintaining consistent fuel pressure at the injector rail. This system significantly reduces evaporative emissions and heat soak compared to traditional return fuel system injectors, where excess fuel is cycled back to the tank via a return line. The simplified design of returnless fuel systems enhances fuel efficiency and improves engine performance by providing precise fuel delivery directly to the injectors.
Overview of Return Fuel Systems
Return fuel system injectors feature a continuous fuel flow loop where excess fuel returns to the tank, maintaining consistent pressure and temperature to prevent vapor lock and improve injector response. This design enhances fuel delivery precision by recirculating unused fuel, ensuring a stable supply under varying engine conditions. Returnless fuel systems, conversely, regulate pressure at the tank, minimizing heat exposure but relying on individual injectors' pressure regulation methods.
Key Components and Operation
Returnless fuel system injectors feature a single fuel line delivering pressurized fuel directly to the injectors, utilizing a fuel pressure regulator inside the tank to maintain consistent pressure, which reduces heat and vapor lock issues. Return fuel system injectors rely on a dual-line setup, where excess fuel returns to the tank through a return line, with the fuel pressure regulator positioned near the engine to control pressure. The key operational difference lies in the fuel pressure regulation location and the presence or absence of a fuel return line, affecting system complexity, temperature management, and fuel delivery consistency.
Fuel Pressure Regulation: Returnless vs Return
Returnless fuel system injectors maintain fuel pressure at the fuel rail by using a pressure regulator located inside the fuel tank, reducing fuel heat soak and improving efficiency. Return fuel system injectors rely on a pressure regulator situated near the engine that returns excess fuel back to the tank, ensuring consistent pressure but causing higher fuel temperatures. The returnless system offers more precise fuel pressure regulation and reduced evaporative emissions compared to the traditional return system.
Efficiency and Performance Comparison
Returnless fuel system injectors enhance efficiency by delivering precise fuel pressure directly to the injectors, reducing fuel vaporization and heat generation compared to return fuel systems. Return fuel system injectors maintain consistent fuel pressure through a fuel return line, which can cause higher fuel temperature and increased pump workload, slightly lowering overall system efficiency. Performance-wise, returnless systems offer quicker response times and improved fuel economy due to minimized fuel heating and reduced vapor lock risk, while return systems provide more stable pressure in high-demand scenarios but at the cost of potential energy losses.
Impact on Emissions and Environmental Considerations
Returnless fuel system injectors reduce evaporative emissions by maintaining a more stable fuel pressure, which limits fuel vapor buildup and leakage compared to return fuel system injectors. By eliminating the fuel return line, returnless systems minimize fuel temperature fluctuations, leading to lower hydrocarbon emissions and better compliance with stringent environmental regulations. In contrast, return fuel system injectors can contribute to higher evaporative emissions due to fuel recirculation and heat exposure in the return line, impacting overall air quality and environmental sustainability.
Maintenance and Reliability Factors
Returnless fuel system injectors reduce maintenance complexity by eliminating fuel return lines, minimizing potential leak points and decreasing fuel pressure fluctuations, which enhances overall reliability. In contrast, return fuel system injectors require careful monitoring of return lines and pressure regulators to prevent clogging and pressure inconsistencies that can lead to injector wear and diminished performance. The simplified design of returnless injectors generally results in lower long-term maintenance costs and improved durability under varying engine conditions.
Application in Modern Vehicles
Returnless fuel system injectors are widely implemented in modern vehicles to enhance fuel efficiency by eliminating the fuel return line, reducing vapor lock risk and minimizing emissions. In contrast, return fuel system injectors, more common in older or heavy-duty vehicles, maintain a fuel return loop that stabilizes fuel pressure but increases complexity and potential for fuel warming. Advances in engine management and fuel delivery precision have driven manufacturers to favor returnless systems for compact engine bays and improved emissions compliance.
Choosing the Right Fuel System Injector
Choosing the right fuel system injector depends on vehicle design and performance goals; returnless fuel system injectors offer precise fuel delivery with reduced fuel temperature and simpler plumbing, enhancing efficiency and emissions control. In contrast, return fuel system injectors maintain consistent fuel pressure through a return line, benefiting high-performance or older vehicles requiring stable fuel flow under varying loads. Evaluating engine requirements and maintenance preferences ensures the optimal injector type for reliability and fuel economy.
