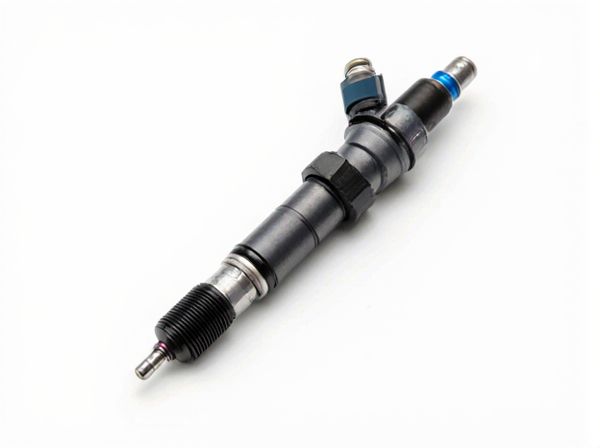

Photo illustration: Saturated Injector vs Peak and Hold Injector
Saturated injectors operate by continuously energizing the injector coil, making them ideal for standard fuel delivery systems with simpler control. Peak and hold injectors use a higher initial current (peak) to quickly open the valve, then drop to a lower current (hold) to maintain it, improving fuel atomization and response times in high-performance setups. Choosing the right injector depends on your engine's requirements and desired precision in fuel delivery.
Table of Comparison
| Feature | Saturated Injector | Peak and Hold Injector |
|---|---|---|
| Operation | Constant full voltage throughout injection | High initial voltage (peak) then reduced voltage (hold) |
| Response Time | Slower opening response | Faster opening response |
| Power Consumption | Higher, continuous current | Lower, limited high current duration |
| Injector Size | Typically larger due to slower response | Smaller possible due to fast actuation |
| Use Case | Older engines, simpler ECU systems | Modern engines, precision fuel control |
| Durability | Higher heat generation, potential wear | Lower heat, longer life expectancy |
Introduction to Fuel Injectors
Fuel injectors are critical components in internal combustion engines, delivering precise amounts of fuel to the engine cylinders. Saturated injectors operate by maintaining a constant current throughout the injection cycle, making them simpler but slower to respond compared to Peak and Hold injectors, which use a high initial peak current to quickly open the injector followed by a lower hold current to maintain it. This distinction influences engine performance, fuel efficiency, and emissions, making the choice between injector types crucial for optimizing fuel delivery systems.
Overview of Saturated Injectors
Saturated injectors operate by applying continuous voltage, allowing the magnetic coil to remain energized throughout the injection cycle, which ensures a stable and consistent fuel spray pattern. They are simpler in design compared to Peak and Hold injectors, which utilize a high initial voltage spike followed by a lower holding voltage to improve response time. Saturated injectors are typically preferred in older or less demanding fuel injection systems due to their reliability and ease of control.
Overview of Peak and Hold Injectors
Peak and hold injectors utilize a rapid voltage spike to open the injector quickly, followed by a lower holding current to keep the injector valve open efficiently, improving fuel atomization and response time. This type of injector is preferred in high-performance and diesel applications due to its ability to reduce heat generation and increase injector longevity. Compared to saturated injectors, peak and hold injectors offer faster response and more precise fuel delivery, enhancing engine performance and fuel efficiency.
Key Differences Between Saturated and Peak and Hold Injectors
Saturated injectors operate with a constant voltage, relying on a fixed duty cycle to control fuel delivery, while peak and hold injectors use a high initial voltage pulse followed by a lower holding voltage, enabling faster injector opening and more precise fuel metering. The key difference lies in their drive strategies; saturated injectors consume more current consistently, limiting responsiveness, whereas peak and hold injectors optimize current usage for improved efficiency and performance. Peak and hold technology allows for quicker response times and finer control in modern fuel injection systems compared to the simpler, less efficient saturated injectors.
Electrical Characteristics and Operations
Saturated injectors operate with a continuous electrical current, typically drawing higher amperage to fully open the injector valve and maintain consistent fuel delivery, making them suitable for low-impedance systems. Peak and hold injectors initially use a high voltage "peak" current to quickly open the injector followed by a lower "hold" current to keep it open, optimizing electrical efficiency and reducing heat buildup. This dual-phase operation in peak and hold injectors results in faster response times and lower power consumption compared to the steady-state current required by saturated injectors.
Performance Impacts on Engine Efficiency
Saturated injectors provide a steady current and longer driver activation time, enabling precise fuel delivery but can limit performance at high RPM due to slower response times. Peak and hold injectors utilize a brief high current peak followed by a lower hold current, improving injector response speed and fuel atomization, enhancing engine efficiency and throttle response especially in high-performance applications. Selecting the appropriate injector type affects fuel metering accuracy, combustion efficiency, and overall engine performance, with peak and hold injectors generally offering superior control for optimized fuel economy and power output.
Compatibility with Engine Management Systems
Saturated injectors provide consistent fuel delivery and are compatible with most traditional engine management systems due to their simple digital on/off signals. Peak and hold injectors require more advanced drivers and are better suited for modern engine management systems that support rapid current switching for precise fuel control. Compatibility depends on the ECU's ability to manage injector pulse widths and current profiles, making saturated injectors ideal for older systems and peak and hold injectors preferred in high-demand, performance-tuned applications.
Cost and Maintenance Considerations
Saturated injectors typically have a lower initial cost and simpler electrical design, making them more budget-friendly for standard fuel injection systems. Peak and hold injectors, while more expensive upfront due to their advanced driver circuitry, offer improved fuel atomization and performance but may require more complex maintenance and potentially higher repair expenses. Maintenance for saturated injectors generally involves straightforward replacement, whereas peak and hold injectors demand specialized knowledge and equipment for diagnostics and servicing, impacting overall maintenance costs.
Applications in Automotive Engines
Saturated injectors provide consistent fuel flow in lower-pressure fuel systems, making them ideal for older or naturally aspirated automotive engines requiring simpler control strategies. Peak and hold injectors offer faster response times and precise control at higher fuel pressures, optimizing performance and emissions in modern engines with advanced electronic fuel injection systems. These characteristics make peak and hold injectors preferable for turbocharged or direct injection engines demanding rapid fuel delivery and improved combustion efficiency.
Choosing the Right Injector for Your Vehicle
Selecting the right fuel injector for your vehicle depends significantly on the injector type's voltage requirements and response speed. Saturated injectors operate with a constant full coil voltage until the injector closes, providing a simpler and more reliable choice for applications requiring high fuel flow rates. Peak and hold injectors use a high initial voltage to quickly open the injector, then switch to a lower holding voltage to reduce heat and power consumption, making them ideal for high-performance or modern vehicles demanding precise fuel control.
