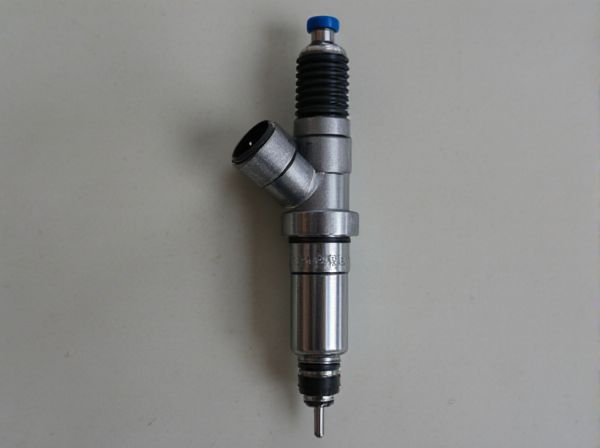

Photo illustration: Spray Angle Injector vs Straight Spray Injector
Spray angle injectors disperse fuel in a wide pattern, improving atomization and combustion efficiency in engines, which leads to better performance and reduced emissions. Straight spray injectors deliver a concentrated, narrow fuel stream, ideal for applications requiring precise fuel placement and deeper penetration into the combustion chamber. Choosing the right injector depends on your engine's design and desired combustion characteristics.
Table of Comparison
| Feature | Spray Angle Injector | Straight Spray Injector |
|---|---|---|
| Spray Pattern | Wide angle, dispersed fuel atomization | Direct, focused fuel spray |
| Fuel Efficiency | Moderate efficiency due to wider coverage | High efficiency with targeted fuel delivery |
| Combustion Performance | Improved mixture formation, better for emissions | Enhanced combustion speed, ideal for performance engines |
| Application | Common in standard gasoline engines | Used in high-performance and racing engines |
| Spray Angle | Typically 60deg-90deg | 0deg (straight) |
| Maintenance | Requires regular cleaning due to wider spray | Lower clogging risk, easier maintenance |
Introduction to Fuel Injector Spray Patterns
Spray angle injectors create a wide, cone-shaped spray pattern that promotes better fuel-air mixing and combustion efficiency in internal combustion engines. Straight spray injectors emit a narrow, focused spray pattern designed for precise fuel delivery in specific combustion chamber configurations. Understanding these fuel injector spray patterns is crucial for optimizing engine performance, emissions, and fuel economy.
What is a Spray Angle Injector?
A spray angle injector atomizes fuel by dispersing it at a specific angle to optimize combustion efficiency and reduce emissions in engines. Spray angle injectors create a defined cone-shaped spray pattern, enhancing fuel-air mixing compared to straight spray injectors that emit fuel in a narrow, linear stream. This design improves combustion stability and power output in automotive, aerospace, and industrial combustion systems.
What is a Straight Spray Injector?
A Straight Spray Injector delivers fuel in a linear, narrow stream directly into the combustion chamber, optimizing fuel atomization and combustion efficiency. This injector type provides precise fuel control, reducing emissions and enhancing engine performance. Compared to Spray Angle Injectors, Straight Spray Injectors focus on targeted fuel delivery for improved power output and fuel economy.
Key Differences Between Spray Angle and Straight Spray Injectors
Spray angle injectors disperse fluid in a wide cone shape, enhancing coverage and mixing efficiency in combustion chambers, while straight spray injectors deliver a focused, narrow jet for precise targeting and deeper penetration. The spray angle influences atomization quality, droplet size distribution, and engine performance, with wider angles promoting better fuel-air mixing and narrower sprays optimizing penetration in confined spaces. Selection between spray angle and straight spray injectors depends on application requirements such as combustion chamber geometry, fuel type, and desired emission characteristics.
Performance Impact of Spray Angle Injectors
Spray angle injectors influence fuel atomization by varying the spray dispersion pattern, which significantly affects combustion efficiency and emissions. A wider spray angle promotes better air-fuel mixing in engines, enhancing fuel vaporization and reducing particulate matter, while a straight spray injector delivers fuel directly, favoring concentrated combustion zones. Optimizing spray angle improves power output and lowers NOx emissions by ensuring more uniform fuel distribution and complete combustion in internal combustion engines.
Fuel Atomization Efficiency Comparison
Spray angle injectors provide wider fuel dispersion, enhancing fuel-air mixing and improving atomization efficiency compared to straight spray injectors, which deliver a concentrated fuel stream. The increased atomization from spray angle injectors leads to better combustion, reduced emissions, and improved engine performance. Straight spray injectors may offer targeted fuel delivery but often sacrifice fuel atomization quality, impacting overall engine efficiency.
Applications Best Suited for Each Injector Type
Spray angle injectors are ideal for applications requiring wide-area coverage, such as agricultural spraying, cooling systems, and fire suppression, where a broad and even distribution of liquid enhances efficiency. Straight spray injectors excel in precise, targeted applications like fuel injection in combustion engines and industrial coating processes, providing focused delivery with minimal overspray. Selecting the appropriate injector depends on the need for either comprehensive area coverage or concentrated spray patterns that optimize performance and resource use.
Impact on Combustion and Emissions
Spray angle injectors influence fuel atomization and air-fuel mixture quality, directly affecting combustion efficiency and emission profiles. Wider spray angles promote better fuel-air mixing, reducing soot formation and lowering particulate emissions, while narrower angles focus the spray, enhancing penetration but possibly increasing soot due to richer local mixtures. Optimal injector selection balances spray angle to improve combustion stability and minimize NOx and unburned hydrocarbons in emissions.
Maintenance and Longevity Considerations
Spray angle injectors typically require more frequent maintenance due to their complex nozzle design, which can be prone to clogging and wear from uneven fuel distribution. In contrast, straight spray injectors offer easier cleaning and longer service life because of their simpler construction and uniform spray pattern. Choosing between the two depends on balancing maintenance intervals and injector durability in specific engine applications.
Choosing the Right Injector for Your Engine
Selecting the right injector for your engine depends on the spray pattern's impact on fuel atomization and combustion efficiency. Spray angle injectors provide a wider spray cone, improving air-fuel mixing in engines designed for lean combustion, while straight spray injectors deliver a more focused fuel stream, enhancing penetration in high-pressure, direct-injection systems. Evaluating engine type, combustion chamber design, and desired emissions performance ensures optimal injector choice for improved power output and fuel economy.
