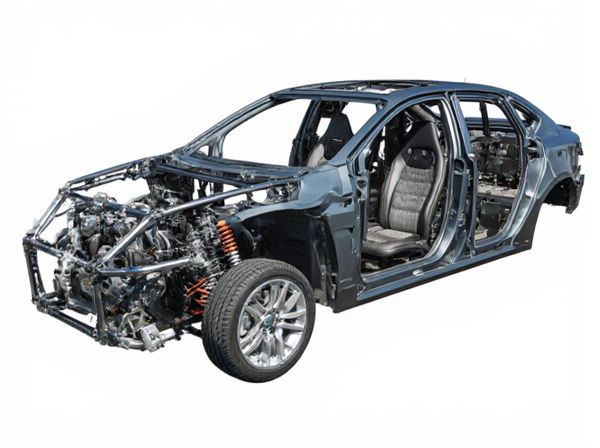

Photo illustration: Space Frame vs Tubular Frame
A space frame offers superior rigidity and lightweight strength by distributing loads evenly across interconnected struts, making it ideal for high-performance applications. Tubular frames focus on simplicity and ease of repair, using cylindrical tubes that provide a good balance of strength and flexibility, often favored in off-road and custom builds. Your choice depends on whether you prioritize maximum structural efficiency or straightforward maintenance and versatility.
Table of Comparison
| Feature | Space Frame | Tubular Frame |
|---|---|---|
| Structure | 3D framework of interconnected struts forming a rigid skeleton | Simple tubular steel or aluminum rods welded together |
| Weight | Lightweight due to triangulated design | Generally heavier, depending on tube thickness |
| Strength & Rigidity | High torsional stiffness and load distribution | Moderate rigidity, less torsional stiffness |
| Manufacturing | Complex fabrication, precise welding required | Simpler construction, easier to manufacture |
| Cost | Higher due to complexity and materials | Lower, cost-effective for prototypes |
| Applications | Racing cars, high-performance vehicles | Kit cars, custom builds, prototype frames |
| Repairability | Challenging due to complex geometry | Easier to repair and modify |
Introduction to Vehicle Frame Structures
Space frames and tubular frames serve key roles in vehicle frame structures, offering distinct advantages in strength and weight distribution. Space frames use a network of interconnected load-bearing struts arranged in triangles, providing exceptional rigidity and crash resistance while minimizing overall weight. Tubular frames consist of round or square tubes welded together to create a durable framework, often favored for ease of fabrication and enhanced torsional stiffness in high-performance applications.
Defining Space Frame Architecture
Space frame architecture consists of a three-dimensional structural framework made of interconnected struts arranged in a geometric pattern, offering exceptional strength and rigidity with minimal material use. Unlike tubular frames that rely on continuous hollow tubes primarily for load-bearing, space frames distribute loads evenly through a network of triangular units, enhancing resistance to bending and torsion. This design enables large spans and lightweight structures, making space frames ideal for modern architectural applications such as stadiums, airports, and exhibition halls.
Understanding Tubular Frame Design
Tubular frame design features a network of cylindrical tubes joined together to create a lightweight yet rigid structure often used in automotive and aerospace applications. The tubular configuration enhances strength-to-weight ratio, improves torsional rigidity, and provides better impact absorption compared to traditional frames. Engineering precision in tube thickness, joint integrity, and material selection such as high-strength steel or aluminum alloys plays a crucial role in optimizing overall performance and durability.
Material Choices and Weight Comparison
Space frames typically use aluminum or steel alloys, offering a strong yet lightweight structure ideal for automotive and architectural applications. Tubular frames, often constructed from chromoly or high-strength steel tubes, provide excellent rigidity but tend to be heavier due to thicker material sections. Weight comparison shows space frames generally achieve lower overall mass, enhancing performance and fuel efficiency, whereas tubular frames prioritize strength and durability at the cost of additional weight.
Structural Strength and Rigidity
Space frames provide superior structural strength and rigidity due to their triangulated design, which efficiently distributes loads across interconnected struts, minimizing deformation under stress. Tubular frames, while offering good torsional rigidity and impact resistance through hollow tube construction, generally exhibit less stiffness compared to space frames because of their simpler geometric configuration. Engineers select space frames when maximizing load distribution and minimizing flex is critical, whereas tubular frames are favored for straightforward fabrication and adequate strength in many vehicle and architectural applications.
Manufacturing and Cost Considerations
Space frames typically involve more complex manufacturing processes due to the precise welding of multiple triangular components, resulting in higher labor costs and longer production times. Tubular frames are generally easier and faster to produce, employing fewer welds and simpler geometries, which reduces manufacturing expenses. The material costs for space frames can be higher due to the use of numerous individual members, while tubular frames often benefit from standardized tubing, lowering overall costs.
Applications in Automotive and Motorsport
Space frames offer exceptional rigidity and lightweight construction, making them ideal for high-performance automotive and motorsport applications where chassis stiffness and crash safety are critical. Tubular frames provide greater flexibility in design and repair, commonly used in off-road vehicles and custom race cars to balance strength with ease of modification. Both frame types are integral to automotive engineering, with space frames dominating in Formula racing and tubular frames prevalent in rally and dirt track motorsports.
Performance Impacts: Handling and Safety
Space frames provide superior torsional rigidity, enhancing vehicle handling precision and cornering stability by distributing stresses evenly across multiple joints. Tubular frames offer lightweight construction, improving agility and acceleration but may sacrifice some stiffness, potentially affecting high-speed stability and crash energy absorption. Safety in space frames benefits from integrated load paths that better manage impact forces, whereas tubular frames require additional reinforcements to achieve comparable crash protection.
Maintenance and Repair Differences
Space frames offer easier inspection and localized repairs due to their modular, interconnected design, allowing replacement of individual components without dismantling the entire structure. Tubular frames require more intensive maintenance as damage to one tube often affects the frame's integrity, necessitating specialized welding and alignment to restore strength. The space frame's access-friendly configuration reduces downtime and overall repair costs compared to the complex, labor-intensive procedures typical for tubular frames.
Choosing the Right Frame: Key Factors
Choosing the right frame between a space frame and a tubular frame depends on factors such as weight distribution, structural rigidity, and application purpose. Space frames offer superior strength-to-weight ratio and enhanced torsional stiffness, making them ideal for high-performance vehicles and aerospace applications. Tubular frames are simpler, easier to manufacture, and provide adequate durability for off-road and budget-friendly projects.
